APC AP6031A power distribution unit (PDU) 4 AC outlet(s) 1U Black
268.59 CAD
Skip to product information
Out of stock
APC AP6031A power distribution unit (PDU) 4 AC outlet(s) 1U Black
Part number
AP6031A
268.59 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
4.658 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
| Design | |
|---|---|
| PDU types | Basic |
| Product colour | Black |
| Certification | cUL, UL, REACH |
| Rack capacity | 1U |
| Ports & interfaces | |

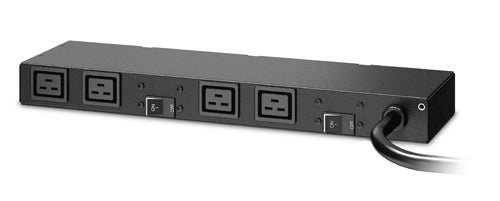

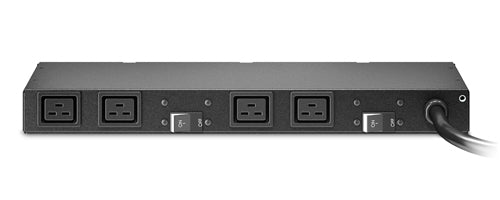

| AC outlets quantity | 4 AC outlet(s) |
| AC outlet types | C19 coupler |
| Input connection type | NEMA L6-30P |
| Features | |
| Cable length | 144.1" (3.66 m) |
| Certification | cUL, UL, REACH |
| Ergonomics | |
| Cable length | 144.1" (3.66 m) |
| Power | |
| Nominal input voltage | 208 V |
| Maximum current | 30 A |
| Nominal output voltage | 208 V |
| Maximum total current draw per phase | 30 A |
| Power protection features | Overload |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 17.2 x 4.96 x 1.73" (438 x 126 x 44 mm) |
| Weight | 8.38 lbs (3.8 kg) |
| Width | 17.2" (438 mm) |
| Depth | 4.96" (126 mm) |
| Height | 1.73" (44 mm) |
| Package width | 18.6" (473 mm) |
| Package depth | 7.09" (180 mm) |
| Package height | 11.1" (281 mm) |
| Package volume | 4600 cm³ |
| Packaging data | |
| Package width | 18.6" (473 mm) |
| Package depth | 7.09" (180 mm) |
| Package height | 11.1" (281 mm) |
| Package volume | 4600 cm³ |
| Technical details | |
| Compliance certificates | RoHS |
