DisplayPort 1.2 KVM | TAA Compliant | USB 2.0 Hub | 7.1 HD Digital Audio

This 4-port KVM switch combines 4K (60Hz) digital display capabilities with control of up to four connected computers.

4K60 Picture and Full Audio Support

The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for 7.1 HD digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.

Integrated USB Hub

The integrated USB 2.0 hub shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected, eliminating the cost of duplicate devices such as printers and scanners.

PC and Mac Compatible

While supporting PCs, this DP KVM switch is also compatible with Mac computers using a Mini DisplayPort adapter, including laptops, notebooks, and tablets.

Simple to Operate

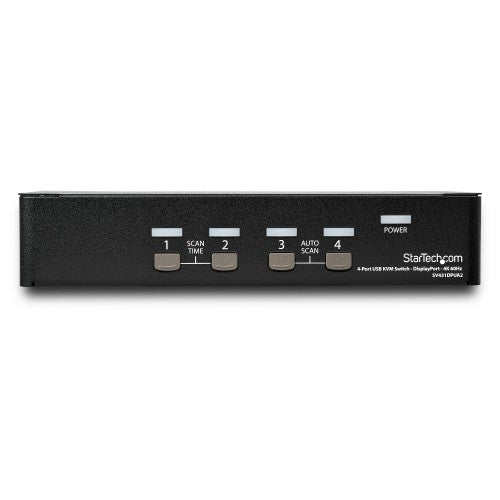

The front-panel pushbuttons make it easy to switch between systems and activate the auto scan. The hotkey functionality makes accessing each system quick while a buzzer sound confirms the switch.

StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM switch is backed by a 3-year warranty and free lifetime technical support.

The StarTech.com Advantage

Ports & interfaces
Number of computers controlled	4
Keyboard port type	USB
Number of microphone inputs	5
Mouse port type	USB
Video port type	DisplayPort
Audio connections	Yes
DisplayPorts quantity	5
Headphone outputs	5
DC-in jack	Yes
Console USB ports quantity	4

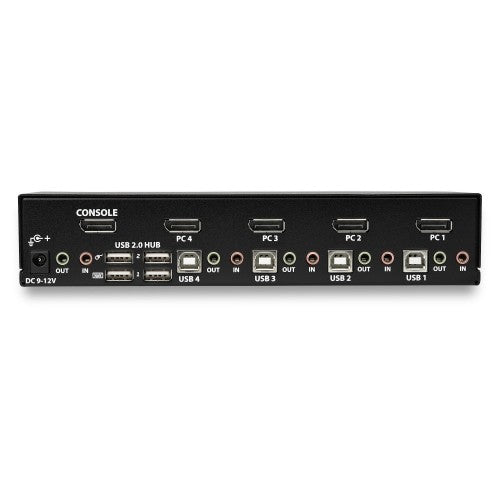

Console ports	3.5mm headphone, 3.5mm mic, DisplayPort, USB A
USB 2.0 Type-B ports quantity	4
Network
Ethernet LAN	No
Performance
Data transfer rate (max)	0.48 Gbit/s
HD type	4K Ultra HD
Plug and Play	Yes
Maximum resolution	3840 x 2160 pixels
Scan interval	3,8,15,30 s
Number of users	1 user(s)
Daisy chain	No
Design
Product colour	Black
Rack mounting	Yes
Mean time between failures (MTBF)	138327 h
LED indicators	Yes
Hot keys	Yes
Certification	CE, FCC, TAA, REACH
Rack capacity	1U
Housing material	Steel
Display
On Screen Display (OSD)	Yes
Power
Output voltage	12 V
Input current	0.6 A
Output current	1.5 A
Power consumption (typical)	18 W
Power plug type	Type M
External power adapter	Yes
Compatible power plug types	AU, EU, JP, UK, US
Input voltage	100 - 240 V
Video
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Sustainability
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 40%
Weight & dimensions

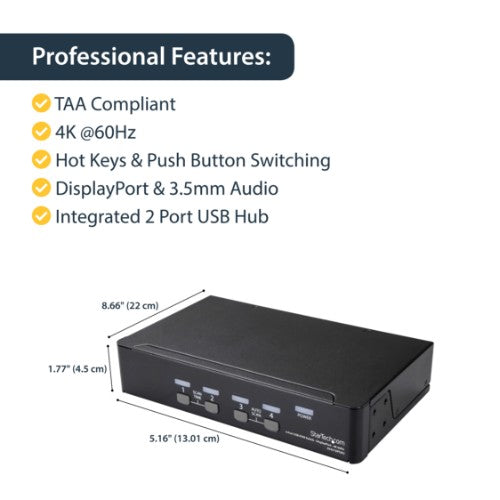

Width	5.16" (131 mm)
Depth	8.66" (220 mm)
Height	1.77" (45 mm)
Weight	2.2 lbs (1 kg)
Package width	8.35" (212 mm)
Package depth	16.1" (409 mm)
Package height	3.43" (87 mm)
Package weight	3.53 lbs (1.6 kg)
Packaging data
Package width	8.35" (212 mm)
Package depth	16.1" (409 mm)
Package height	3.43" (87 mm)
Package weight	3.53 lbs (1.6 kg)
Packaging content
Rubber feet	Yes
Quick installation guide	Yes
AC adapter included	Yes
Certificates
Certification	CE, FCC, TAA, REACH
Other features
IP control	No
Audio support	Yes
Hot keys	Yes
Technical details
Compliance certificates	RoHS
Logistics data
Master (outer) case width	17" (433 mm)
Master (outer) case length	21.5" (545 mm)
Master (outer) case height	10.2" (258 mm)
Products per master (outer) case	6 pc(s)
Harmonized System (HS) code	85176200
