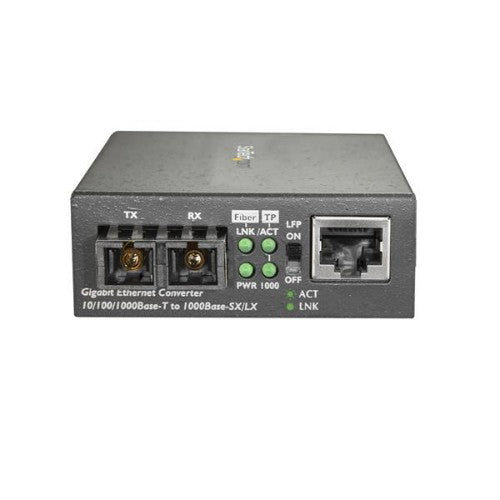

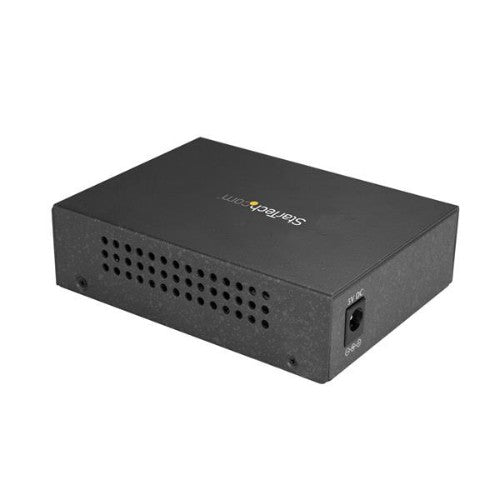

Convert and extend a Gigabit Ethernet connection up to 550 m over multimode SC fiber

This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m over multimode fiber, on 1000BASE-SX networks.

Extend your GbE network cost-effectively

The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.

The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Converts and extends a Gigabit Ethernet fiber (1000Mbps) network over multimode fiber on 1000BASE-SX networks
- Provides a cost-effective Ethernet to fiber/copper to fiber link
- Supports a maximum distance of 550 m over multimode fiber-optic cable (SC connection)

Network
Fiber optic connector	SC
Maximum data transfer rate	1000 Mbit/s
Store-and-forward	Yes
Flow control support	Yes
Jumbo frames	9000
Converter input interface	100Base-TX, 1000Base-T
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Jumbo frames support	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Duplex system	Full
Converter output interface	1000Base-SX
Auto MDI/MDI-X	Yes
Performance
Store-and-forward	Yes
Flow control support	Yes
Jumbo frames support	Yes
Wavelength	850 nm
Maximum transfer distance	21653.5" (550 m)
Fiber mode structure	Multi-mode
Wavelength-division multiplexing (WDM)	No
Mean time between failures (MTBF)	50000 h
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC
Design
Internal	No
LED indicators	Activity, Link, Power
Housing material	Steel
Product colour	Black
Certification	CE, FCC, REACH
Power
Input voltage	100 - 240 V
Input current	0.5 A
Output voltage	5 V
Output current	2.6 A
Power consumption (typical)	5 W
Power plug type	Type N
External power adapter	Yes
Weight & dimensions
Width	3.82" (97 mm)
Depth	2.76" (70 mm)
Height	1.02" (26 mm)
Weight	7.05 oz (200 g)
Package width	11" (280 mm)
Package depth	5.24" (133 mm)
Package height	2.6" (66 mm)
Package weight	19.9 oz (564 g)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 90%
Packaging data
Package width	11" (280 mm)
Package depth	5.24" (133 mm)
Package height	2.6" (66 mm)
Package weight	19.9 oz (564 g)
Packaging content
Quick installation guide	Yes

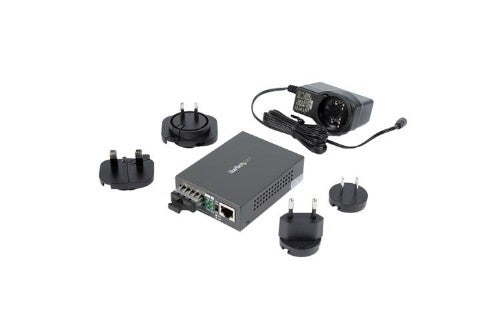

AC adapter included	Yes
Technical details
Harmonized System (HS) code	85176990
Compliance certificates	RoHS
Certificates
Certification	CE, FCC, REACH
Logistics data
Master (outer) case width	23.4" (595 mm)
Master (outer) case length	14.8" (375 mm)
Master (outer) case height	12.6" (320 mm)
Products per master (outer) case	20 pc(s)
Harmonized System (HS) code	85176990
