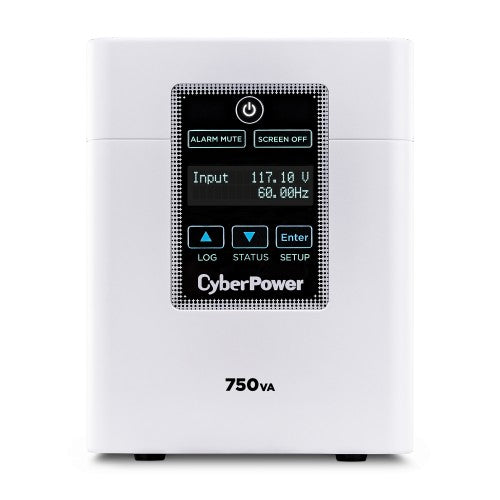

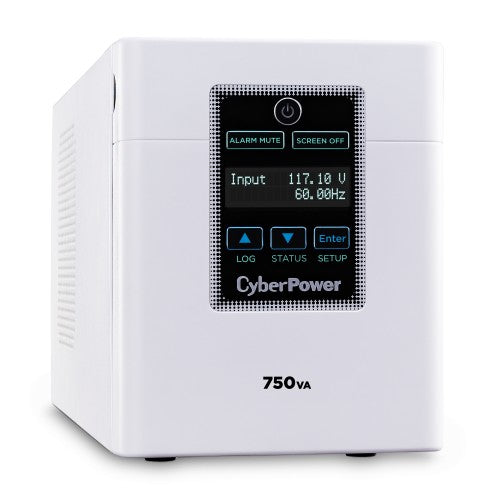

The CyberPower M750L medical-grade UPS delivers clean, consistent backup power to sensitive medical equipment in hospitals and healthcare facilities. Designed for use in patient care vicinities, the M750L has been tested to meet all UL 60601-1 requirements, and includes hospital-grade plugs and outlets. The M750L also includes a built-in isolation transformer to minimize the current leakage and eliminate line noise, a tip-resistant mini-tower design, replaceable batteries, and a sealed, spray-resistant LCD panel.

The M750L medical-grade UPS is covered by a three-year warranty (including coverage of batteries) and a $400,000 Connected Equipment Guarantee.

NOTE: This UPS is not intended for use in critical care or life support applications.

Battery Backup
Provides power to cover shorter-outages and supplies power long enough for equipment to properly shut down when utility power fails for longer periods of time. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.

Line Interactive Topology
Exists when a UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.

Automatic Voltage Regulation (AVR)
Provides clean, consistent AC power by automatically regulating low voltages and over voltages, within defined tolerances, when incoming utility power has minor fluctuations.
UL 60601-1 Tested
Meets all UL 60601-1 requirements necessary for use in patient-care environments.

Hospital-Grade Plugs & Outlets
Offer an added degree of safety and reliability to the input/output connections of hospital-grade equipment.

Isolation Transformer
Minimizes the current leakage and cumulative shock potential of connected equipment to below 100μA (microamps) and helps to alleviate line noise.

Sealed LCD Screen
Resists dirt, debris and spray, and can withstand repeated cleaning procedures common to patient-care environments.

Multifunction LCD Panel
Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.

Ultra Quiet Design
Minimizes noise during operation for a quieter patient environment.

Replaceable Batteries
Can be quickly accessed and replaced by a qualified technician. Batteries are hot-swappable to eliminate unnecessary downtime.

PowerPanel® Business Edition Software
Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available. See the Resources tab.

Three-Year Warranty
CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.

Connected Equipment Guarantee
CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.

Power
Output power capacity	0.75 kVA
Output power	600 W
Input operation voltage (min)	88 V
Input operation voltage (max)	150 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	1445 J
Output power factor	0.8
Output frequency	60 Hz
Input frequency	60 Hz

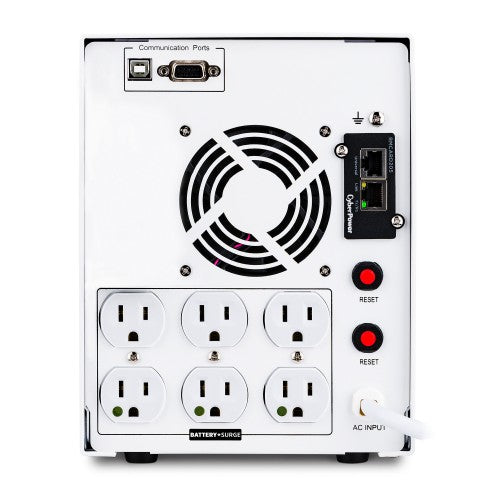

Ports & interfaces
Cable length	70.9" (1.8 m)
Socket circuit breaker	Yes
AC outlets quantity	6 AC outlet(s)
AC outlet types	NEMA 5-15R
Power plug	NEMA 5-15P-HG
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
USB 2.0 ports quantity	1
RS-232 ports	1
USB port type	USB Type-B
Performance
UPS topology	Line-Interactive
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
EMI/RFI noise filtering	Yes
Waveform	Pseudo sine
Power protection features	Overload
Automatic Voltage Regulation (AVR)	Yes
Audible alarm(s)	Yes
Transfer time (Line Mode to Battery Mode)	10 ms
Features
UPS topology	Line-Interactive
Output power capacity	0.75 kVA
Audible alarm modes	Alarm when on battery, Fault, Low battery alarm, Overload alarm
Output power	600 W
Input operation voltage (min)	88 V
Input operation voltage (max)	150 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	1445 J
EMI/RFI noise filtering	Yes
Waveform	Pseudo sine
Power protection features	Overload
Output power factor	0.8
Output frequency	60 Hz
Automatic Voltage Regulation (AVR)	Yes
Audible alarm(s)	Yes
Socket circuit breaker	Yes
Transfer time (Line Mode to Battery Mode)	10 ms
Input frequency	60 Hz
Battery
Battery technology	Sealed Lead Acid (VRLA)
Number of batteries supported	3
Typical backup time at half load	30 min
Typical backup time at full load	12 min
Hot-swap battery	Yes
Battery voltage	12 V
Battery capacity	7 Ah
Battery recharge time(90%)	8 h
Design
Form factor	Mini Tower
Product colour	White
Safety	UL1778, CSA, FCC 15 A (EMI), UL60601-1
Cable length	70.9" (1.8 m)
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Operating altitude	0 - 118110.2" (0 - 3000 m)
Technical details
Output frequency	60 Hz
Compliance certificates	RoHS
Weight & dimensions
Width	8.66" (220 mm)
Depth	17" (431 mm)
Height	6.69" (170 mm)
Weight	52.7 lbs (23.9 kg)
Packaging data
Cables included	Serial, USB cable
Manual	Yes
Certificates
Safety	UL1778, CSA, FCC 15 A (EMI), UL60601-1
Packaging content
Cables included	Serial, USB cable
Manual	Yes
