Tripp Lite SRWALLBRKT2U rack accessory Mounting bracket
94.92 CAD
Skip to product information
Out of stock
Tripp Lite SRWALLBRKT2U rack accessory Mounting bracket
Part number
SRWALLBRKT2U
94.92 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
1.8 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- 19-inch wall-mount rack with maximum load capacity of 175 lbs (79.4 kgs)
- Provides open, unrestricted access to equipment and cabling
- Made from cold-rolled steel with black powder-coated finish
- Equipment-mounting hardware included
- Compatible with most EIA-standard 19 in. 2-post rack equipment
The SRWALLBRKT2U SmartRack® 2U Vertical Wall-Mount Rack Bracket is recommended for home offices and small businesses with rack-mount equipment that doesn't need to be secured and no room on the premises for a standard 19-inch server rack.

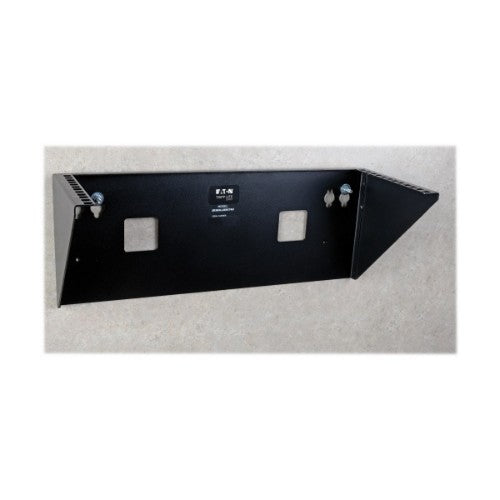

Made from heavy-duty cold-rolled steel with a durable black powder-coated finish, this 2U rack-mount bracket easily attaches to the wall of your back office or closet with user-supplied hardware. Wall-mounting holes are spaced 16 inches part to match standard wall-stud placement. Or you can install the bracket horizontally beneath a desk or workbench for instant access.

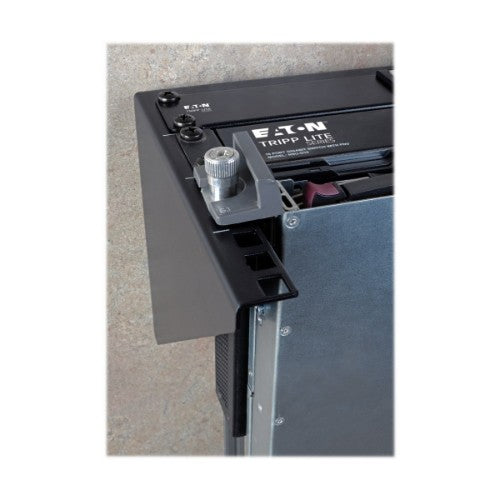

Use the included hardware to attach your 2U rack-mount equipment, such as a network switch or UPS system, to the steel bracket's rails. Its maximum load capacity is 175 lbs (79.4 kgs). Connected equipment hangs flush against the wall, allowing you unrestricted access. The SRWALLBRKT2U is compatible with most EIA-standard 19-inch two-post rack equipment.
Made from heavy-duty cold-rolled steel with a durable black powder-coated finish, this 2U rack-mount bracket easily attaches to the wall of your back office or closet with user-supplied hardware. Wall-mounting holes are spaced 16 inches part to match standard wall-stud placement. Or you can install the bracket horizontally beneath a desk or workbench for instant access.
Use the included hardware to attach your 2U rack-mount equipment, such as a network switch or UPS system, to the steel bracket's rails. Its maximum load capacity is 175 lbs (79.4 kgs). Connected equipment hangs flush against the wall, allowing you unrestricted access. The SRWALLBRKT2U is compatible with most EIA-standard 19-inch two-post rack equipment.
| Features | |
|---|---|
| Easy mounting | Yes |
| Type | Mounting bracket |
| Rack capacity | 2U |
| Maximum weight capacity | 174.2 lbs (79 kg) |
| Product colour | Black |
| Harmonized System (HS) code | 7326.90.8688 |
| Housing material | Steel |
| Country of origin | China |
| Weight & dimensions | |
| Package width | 21.9" (555 mm) |
| Package depth | 8.46" (214.9 mm) |
| Package height | 5.91" (150.1 mm) |
| Package weight | 3.97 lbs (1.8 kg) |
| Width | 19.7" (500.1 mm) |
| Weight | 2.65 lbs (1.2 kg) |
| Height | 4.16" (105.7 mm) |
| Depth | 4.15" (105.4 mm) |
| Packaging data | |
| Package width | 21.9" (555 mm) |
| Package depth | 8.46" (214.9 mm) |
| Package height | 5.91" (150.1 mm) |
| Package weight | 3.97 lbs (1.8 kg) |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Screws included | Yes |
| Mounting kit | Yes |
| Nuts included | Yes |
| Number of screws | 12 |
| Number of nuts | 12 |
| Quick installation guide | Yes |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 10037332203196 |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 22.4" (570 mm) |
| Master (outer) case length | 43.7" (1110 mm) |
| Master (outer) case height | 12.6" (320 mm) |
| Master (outer) case gross weight | 46.3 lbs (21 kg) |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 7326.90.8688 |
