Revolutionary 5-speed 10-Gigabit/Multi-Gigabit technology built in the NETGEAR multi-speed switches allows your devices to speed past the Gigabit barrier.
With the growth of virtualization, flash Storage, 4K videos , video streaming and IP surveillance, SMB networks need to extend beyond 1 Gigabit barrier. The 10-Gigabit/Multi-Gigabit Smart Managed Plus series from NETGEAR presents the right solution for this requirement; delivering unprecedented 10-Gigabit/Multi-Gigabit bandwith at an affordable cost.
Each port automatically detects which speed is needed by the connected device and provides the adequate speed. As opposed to regular 10-Gigabit switches that will only provide 1-Gigabit connectivity to any device that require less than 10-Gigabit, the XS512EM and XS724EM gives the exact speed required, no downgrade. Also, the new NETGEAR Multi-speed switch ports can be connected with regular Cat5E Ethernet cables, without the need to upgrade to Cat6/Cat6A wiring, therefore reducing wiring costs and hassle

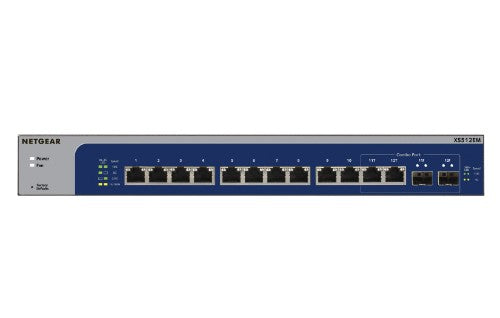

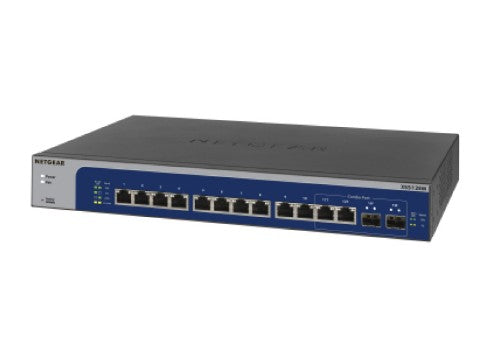

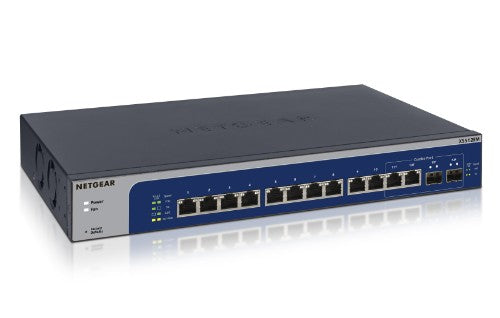

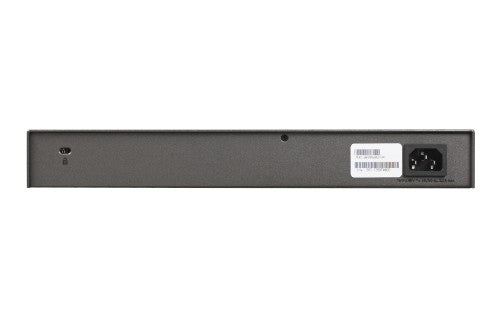

NETGEAR XS512EM Managed L2 10G Ethernet (100/1000/10000) 1U Blue, Gray
Part number
XS512EM-100NAS
$1,317.53 CAD
12x 10-Gig/Multi-Gig Copper, 2x 10G SFP+, Active Fan, Metal, Rackmount/Desktop
Description
Unlock your Network Potential with 10-Gigabit/Multi-Gigabit 5-Speed Networking SwitchesRevolutionary 5-speed 10-Gigabit/Multi-Gigabit technology built in the NETGEAR multi-speed switches allows your devices to speed past the Gigabit barrier.
With the growth of virtualization, flash Storage, 4K videos , video streaming and IP surveillance, SMB networks need to extend beyond 1 Gigabit barrier. The 10-Gigabit/Multi-Gigabit Smart Managed Plus series from NETGEAR presents the right solution for this requirement; delivering unprecedented 10-Gigabit/Multi-Gigabit bandwith at an affordable cost.
Each port automatically detects which speed is needed by the connected device and provides the adequate speed. As opposed to regular 10-Gigabit switches that will only provide 1-Gigabit connectivity to any device that require less than 10-Gigabit, the XS512EM and XS724EM gives the exact speed required, no downgrade. Also, the new NETGEAR Multi-speed switch ports can be connected with regular Cat5E Ethernet cables, without the need to upgrade to Cat6/Cat6A wiring, therefore reducing wiring costs and hassle
Specifications
| Network | |
|---|---|
| IGMP snooping | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | 64 |
| VLAN support | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | Port-based VLAN |
| Virtual LAN features | |
| Number of VLANs | 64 |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN |
| Data transmission | |
| Number of VLANs | 64 |
| MAC address table | 32000 entries |
| Switching capacity | 240 Gbit/s |
| Jumbo frames | 9000 |
| Store-and-forward | Yes |
| Latency (10 Gbps) | 4.3 µs |
| Jumbo frames support | Yes |
| Packet buffer memory | 3 MB |
| Forwarding rate | 178.6 Mpps |
| Performance | |
| Packet buffer memory | 3 MB |
| Mean time between failures (MTBF) | 1113477 h |
| Power | |
| Power connector | DC-in jack |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 76.56 W |
| Input current | 2 A |
| Management features | |
| Switch layer | L2 |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 2 |
| Power connector | DC-in jack |
| Security | |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
| Design | |
| Rack mounting | Yes |
| Product colour | Blue, Gray |
| Form factor | 1U |
| LED indicators | Yes |
| Housing material | Metal |
| Certification | 47 CFR FCC, ICES-003:2016, ANSI C63.4:2014, EN55032:2012+AC:2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS/NZS CISPR 32:2013, VCCI-CISPR32:2016, CNS 13438, IEC 60950-1:2005(ed.2) + A1:2009 + A2:2013, UL 60950-1, EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, AS/NZS 60950.1:2015 CNS14336-1 |
| Number of fans | 2 fan(s) |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 261.38 BTU/h |
| Weight & dimensions | |
| Width | 9.37" (238 mm) |
| Depth | 8.03" (204 mm) |
| Height | 1.69" (43 mm) |
| Weight | 5.53 lbs (2.51 kg) |
| Packaging data | |
| User guide | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Cables included | AC |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Packaging content | |
| User guide | Yes |
| Quick start guide | Yes |
| Manual | Yes |
| Cables included | AC |
