In stock

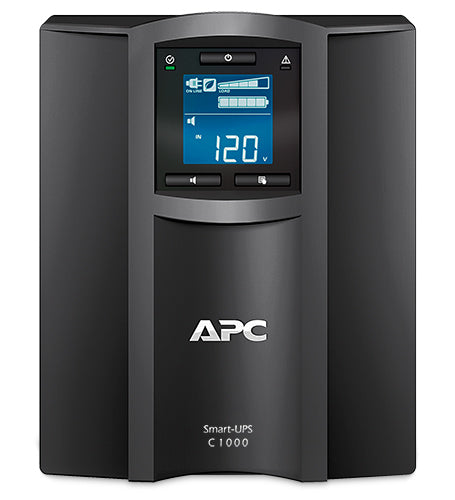

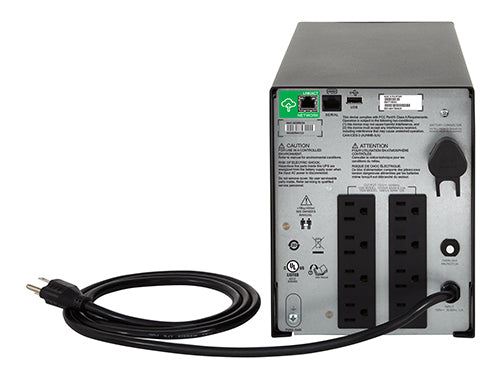

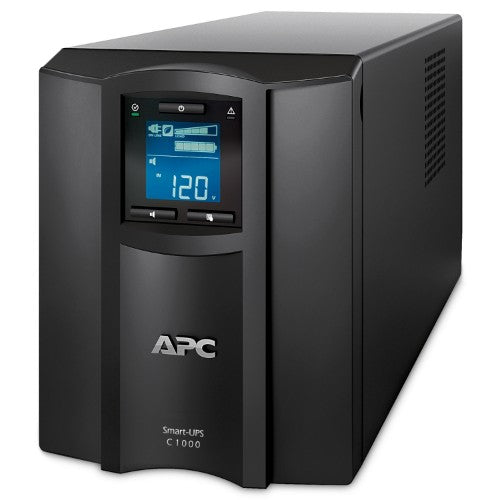

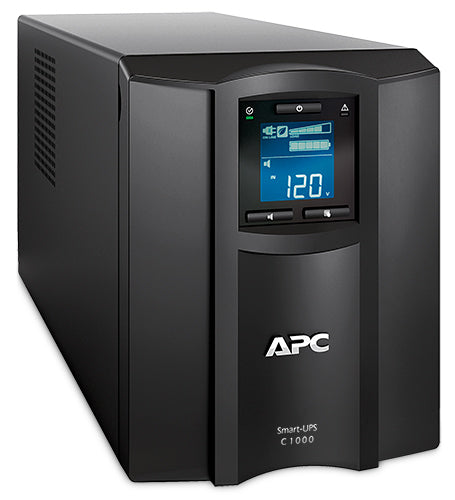

APC SMC1000C uninterruptible power supply (UPS) Line-Interactive 1 kVA 600 W 8 AC outlet(s)
Part number
SMC1000C
Regular price
$576.87 CAD
Sale price
$568.96 CAD
600 W, 120V, 50/60Hz, 8x NEMA 5-15R, RJ-45, USB, LCD, 219x171x439 mm
Key Features
- Cold-start capable
- Green mode
- High online efficiency
- LCD Status Display
- Pure sine wave output on battery
- Temperature-compensated battery charging
Description
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.Specifications
| Power | |
|---|---|
| Output power capacity | 1 kVA |
| Output power | 600 W |
| Input operation voltage (min) | 85 V |
| Input operation voltage (max) | 136 V |
| Output operation voltage (min) | 110 V |
| Output operation voltage (max) | 127 V |
| Surge energy rating | 680 J |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Output frequency | 50/60 Hz |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| Cable length | 72" (1.83 m) |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | NEMA 5–15R |
| Power plug | NEMA 5-15P |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| Performance | |
| UPS topology | Line-Interactive |
| Hold time (min) | 6 ms |
| Hold time (max) | 10 ms |
| Audible alarm modes | Alarm when on battery, Low battery alarm |
| Surge protection | Yes |
| Waveform | Sine |
| Auto-restart | Yes |
| Noise level | 41 dB |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 1 kVA |
| Hold time (min) | 6 ms |
| Hold time (max) | 10 ms |
| Audible alarm modes | Alarm when on battery, Low battery alarm |
| Output power | 600 W |
| Input operation voltage (min) | 85 V |
| Input operation voltage (max) | 136 V |
| Output operation voltage (min) | 110 V |
| Output operation voltage (max) | 127 V |
| Surge energy rating | 680 J |
| Surge protection | Yes |
| Waveform | Sine |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Output frequency | 50/60 Hz |
| Auto-restart | Yes |
| Noise level | 41 dB |
| Input frequency | 50/60 Hz |
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery technology | Lead-Acid |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Replacement battery cartridge | APCRBC142 |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Certification | CSA, CSA C22.2 No. 107.1, ENERGY STAR V1.0 (USA), FCC 15 B, ICES-003, UL 1778 |
| Cable length | 72" (1.83 m) |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Technical details | |
| Output voltage | 120 V |
| Output frequency | 50/60 Hz |
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 6.73" (171 mm) |
| Depth | 17.3" (439 mm) |
| Height | 8.62" (219 mm) |
| Weight | 37.5 lbs (17 kg) |
| Package width | 13" (330 mm) |
| Package depth | 23.2" (590 mm) |
| Package height | 13" (330 mm) |
| Package weight | 43.2 lbs (19.6 kg) |
| Packaging data | |
| Cables included | USB cable |
| Resource CD | Yes |
| Software CD | Yes |
| Package width | 13" (330 mm) |
| Package depth | 23.2" (590 mm) |
| Package height | 13" (330 mm) |
| Package weight | 43.2 lbs (19.6 kg) |
| Logistics data | |
| Products per pallet | 12 pc(s) |
| Certificates | |
| Certification | CSA, CSA C22.2 No. 107.1, ENERGY STAR V1.0 (USA), FCC 15 B, ICES-003, UL 1778 |
| Other features | |
| Output voltage | 120 V |
| Packaging content | |
| Cables included | USB cable |
| Resource CD | Yes |
| Software CD | Yes |
