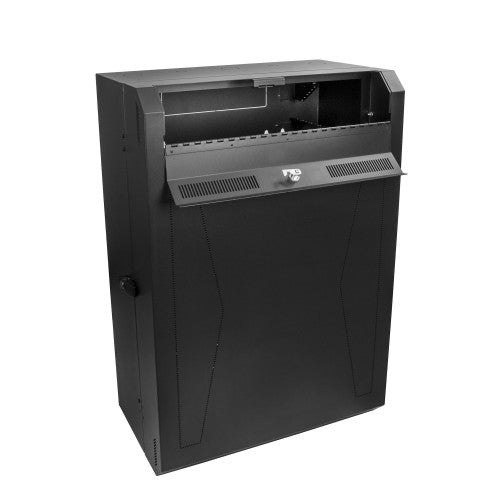

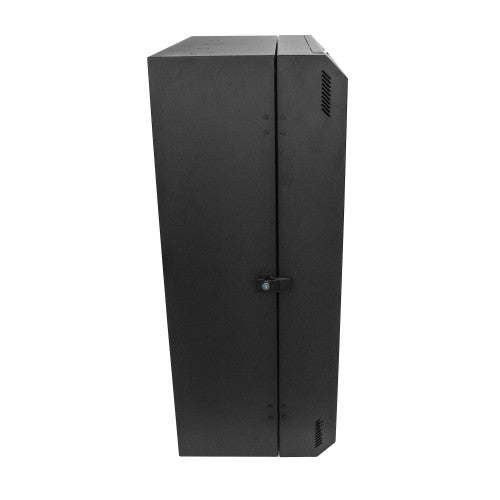

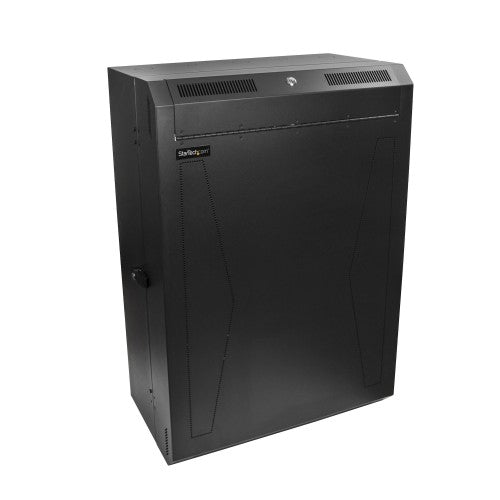

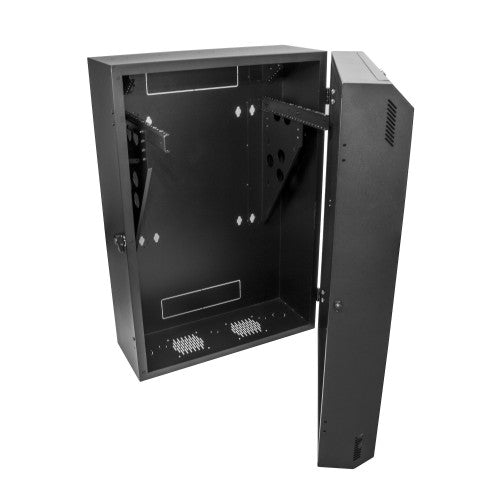

Vertically wall-mount your server or networking equipment in this 8U network cabinet

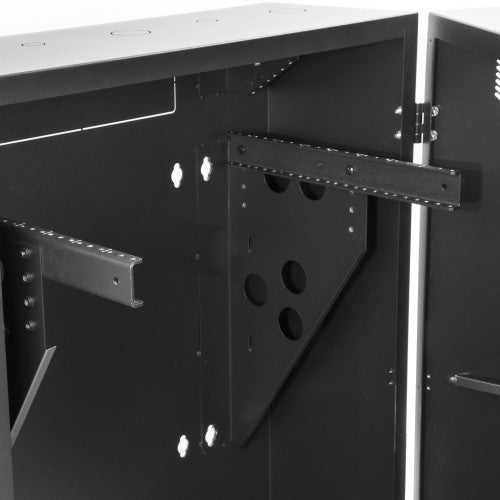

This 8U vertical server cabinet offers a space-saving way to keep your network and server equipment secure. With its 30 in. depth, and a weight capacity of up to 200 lb. (90.7 kg), the server rack/cabinet is designed to fit your needs. It also features an additional 2U mounting bracket positioned toward the top of the enclosure, that you can use to mount patch cables or other shallow rack-mount equipment.

Free up space

Wall-mount your equipment, even if you don’t have enough space for a full-sized rack or cabinet. This low-profile server cabinet is perfect for areas where space is at a premium, such as an office. The cabinet saves space by extending only minimally from the wall and housing the length of your equipment vertically. This reduces the horizontal footprint of your equipment while still providing plenty of room for your servers, patch panels, and switches.

Keep your equipment cool and secure

To help keep your equipment secure, the vertical server cabinet/network rack features a sturdy metal design and a lock on both the door and access panel. It is also vented, providing passive cooling to help keep your equipment running at suitable temperatures.

Easy, hassle-free installation

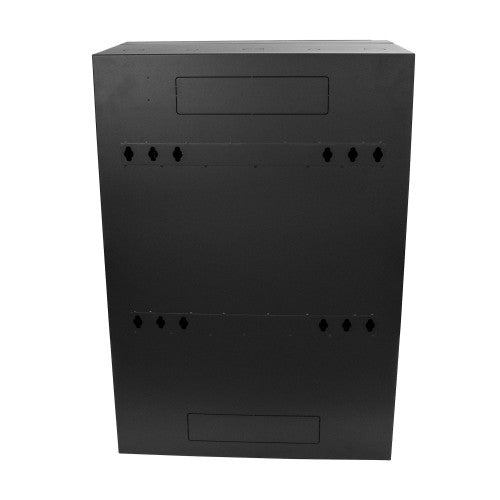

The server rack comes fully assembled and includes all of the necessary hardware to install equipment, making installation fast and easy. The mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common North American wall-frame stud spacing.

The RK830WALVS is backed by a StarTech.com 5-year warranty and free lifetime technical support.

The StarTech.com Advantage

Weight & dimensions
Package width	28.3" (720 mm)
Package depth	18.1" (460 mm)
Package height	40.2" (1020 mm)
Package weight	86 lbs (39 kg)
Width	26.6" (675 mm)
Depth	15.1" (383 mm)
Height	37" (940 mm)
Inner width	25.3" (64.2 cm)
Inner depth	14.8" (37.6 cm)
Weight	80.5 lbs (36.5 kg)

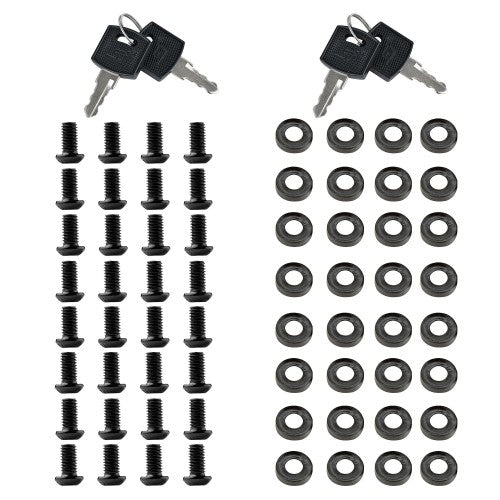

Packaging content
Mounting kit	Yes
Nuts included	Yes
Number of nuts	32
Manual	Yes
Screws included	Yes
Number of screws	32
Features
Castor wheels	No
Adjustable mounting rails	Yes
Removable back door	No
Removable front door	No
Back door construction	Steel
Front door construction	Steel
Side panel construction	Steel
Cable management	Yes
Mounting hole shape	Round
Back door key lock	No
Front door key lock	Yes
Side panel key lock	No
Type	Wall mounted rack
Rack capacity	8U
Maximum weight capacity	198.4 lbs (90 kg)
Frame type	Closed
Product design	2-post
Product colour	Black
Material	Steel
Packaging data
Mounting kit	Yes
Nuts included	Yes
Number of nuts	32
Manual	Yes
Package width	28.3" (720 mm)
Package depth	18.1" (460 mm)
Package height	40.2" (1020 mm)
Package weight	86 lbs (39 kg)
Screws included	Yes
Number of screws	32
Technical details
Harmonized System (HS) code	85381000
Compliance certificates	CE, RoHS
Rack capacity	8U
Logistics data
Master (outer) case width	18.1" (460 mm)
Master (outer) case length	28.3" (720 mm)
Master (outer) case height	40.2" (1020 mm)
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	85381000
Other features
Compliance industry standards	EIA/ECA-310-E
