Tripp Lite B024-DUA8-SL KVM switch Rack mounting Black
1,024.58 CAD
Skip to product information
Out of stock
Tripp Lite B024-DUA8-SL KVM switch Rack mounting Black
Part number
B024-DUA8-SL
1,024.58 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
3.63 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
The B024-DUA8-SL DVI/USB KVM Switch allows you to control eight computers with audio using a single DVI monitor, USB keyboard and USB mouse. Plus, by cascading up to three levels of KVM switches, you can control up to 512 computers at the same time.
Recommended for IT managers needing centralized access to a variety of digital and analog servers, this DVI/USB KVM switch also supports a VGA display when connected to a DVI to VGA adapter (such as Tripp Lite’s P556-Series).
The DVI-I single-link connector supports digital video resolutions up to 1920 x 1200, including 1080p, and analog video resolutions up to 2048 x 1536. The multi-view installation feature lets you stack up to four KVM switches for connecting computers with up to four DVI outputs and displaying video on up to four console monitors, giving you flexibility in video output. A 3.5 mm microphone jack provides audio input to connected computers. A 3.5 mm audio jack provides 2.1-channel sound to connected speakers.
The OSD presents a text-based interface in eight different languages and allows backup of KVM configuration and user profile information. Dual-tier password protection enhances security for an administrator and up to four users. A DB9 cable is included for firmware upgrades that keep the KVM switch up to date with the latest technology. Easy front-panel access to USB 2.0 hub ports allows quick connection of two USB devices, such as flash drives and printers.
Control 8 Computers + Audio from a Single DVI Monitor, Keyboard and Mouse
- 8-port KVM switch recommended for IT managers needing centralized access to a variety of digital and analog servers
- Switch between connected computers via front-panel buttons, keyboard hotkeys or OSD
- Supports digital video resolutions up to 1920 x 1200 (1080p) and analog video resolutions up to 2048 x 1536
- Supports 2.1-channel surround sound with full bass response
- Also supports VGA display when connected to a DVI to VGA adapter
Connect Up to 512 Computers to One Original Console
- Expand the number of controlled computers by cascading up 3 levels of KVM switches
Multi-View Installation
- Allows stacking of up to 4 KVMs for connecting computers with up to 4 DVI outputs and displaying video on up to 4 console monitors
Independent USB 2.0 Peripheral Sharing
- 2-port front-panel USB 2.0 hub allows sharing of devices (printers, hard drives, scanners, webcams) between connected computers
Multilingual On-Screen Display
- OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian and French
- Text-based interface offers direct access to every connected computer
- Backs up and restores KVM configuration and user profile info
Dual-Tier Password Protection
- Enhances security for administrator and up to 4 users
Hot-Plugging and Auto Scan
- Computers and devices can be disconnected and reconnected without KVM switch shutdown
- Automatically switches between ports every 5 seconds for convenient monitoring
Flexible Keyboard/Mouse Applications
- Console mouse port emulation/bypass supports most mouse drivers and multifunction mice
- Complete keyboard emulation for error-free booting
Easy Setup and Use
- Plug-and-play operation with no software or drivers to install
- Durable metal housing mounts in 1U of space in EIA-standard 19 in. rack
- Upgradable firmware to ensure up-to-date operation
- Compatible with Windows, Mac, Sun and Linux
TAA-Compliant
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
System Requirements
- Computer with DVI or VGA (optional) port, USB port and microphone/speaker 3.5 mm jacks (optional)
- Any major operating system
- Console with DVI or VGA (optional) monitor, USB keyboard and mouse, and microphone and speaker with 3.5 mm connectors (optional)

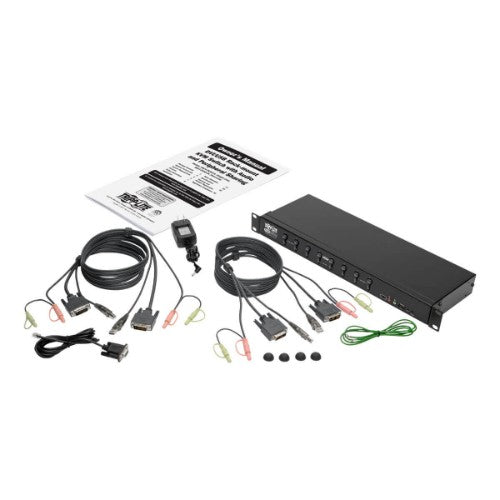

Package Includes
- B024-DUA8-SL DVI/USB 8-Port KVM Switch
- (2) DVI/USB KVM cable kits, 6 ft.
- External power supply w/NEMA 1-15P plug and 5 ft. cord (Input: 100–240V, 50/60 Hz, 0.5A; Output: 5.3V 2.4A)
- RJ11 to DB9 firmware upgrade cable, 6 ft.
- Grounding wire
- Rack-mounting hardware
- Rubber feet
- Owner’s manual
Recommended for IT managers needing centralized access to a variety of digital and analog servers, this DVI/USB KVM switch also supports a VGA display when connected to a DVI to VGA adapter (such as Tripp Lite’s P556-Series).
The DVI-I single-link connector supports digital video resolutions up to 1920 x 1200, including 1080p, and analog video resolutions up to 2048 x 1536. The multi-view installation feature lets you stack up to four KVM switches for connecting computers with up to four DVI outputs and displaying video on up to four console monitors, giving you flexibility in video output. A 3.5 mm microphone jack provides audio input to connected computers. A 3.5 mm audio jack provides 2.1-channel sound to connected speakers.
The OSD presents a text-based interface in eight different languages and allows backup of KVM configuration and user profile information. Dual-tier password protection enhances security for an administrator and up to four users. A DB9 cable is included for firmware upgrades that keep the KVM switch up to date with the latest technology. Easy front-panel access to USB 2.0 hub ports allows quick connection of two USB devices, such as flash drives and printers.
Control 8 Computers + Audio from a Single DVI Monitor, Keyboard and Mouse
- 8-port KVM switch recommended for IT managers needing centralized access to a variety of digital and analog servers
- Switch between connected computers via front-panel buttons, keyboard hotkeys or OSD
- Supports digital video resolutions up to 1920 x 1200 (1080p) and analog video resolutions up to 2048 x 1536
- Supports 2.1-channel surround sound with full bass response
- Also supports VGA display when connected to a DVI to VGA adapter
Connect Up to 512 Computers to One Original Console
- Expand the number of controlled computers by cascading up 3 levels of KVM switches
Multi-View Installation
- Allows stacking of up to 4 KVMs for connecting computers with up to 4 DVI outputs and displaying video on up to 4 console monitors
Independent USB 2.0 Peripheral Sharing
- 2-port front-panel USB 2.0 hub allows sharing of devices (printers, hard drives, scanners, webcams) between connected computers
Multilingual On-Screen Display
- OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian and French
- Text-based interface offers direct access to every connected computer
- Backs up and restores KVM configuration and user profile info
Dual-Tier Password Protection
- Enhances security for administrator and up to 4 users
Hot-Plugging and Auto Scan
- Computers and devices can be disconnected and reconnected without KVM switch shutdown
- Automatically switches between ports every 5 seconds for convenient monitoring
Flexible Keyboard/Mouse Applications
- Console mouse port emulation/bypass supports most mouse drivers and multifunction mice
- Complete keyboard emulation for error-free booting
Easy Setup and Use
- Plug-and-play operation with no software or drivers to install
- Durable metal housing mounts in 1U of space in EIA-standard 19 in. rack
- Upgradable firmware to ensure up-to-date operation
- Compatible with Windows, Mac, Sun and Linux
TAA-Compliant
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
System Requirements
- Computer with DVI or VGA (optional) port, USB port and microphone/speaker 3.5 mm jacks (optional)
- Any major operating system
- Console with DVI or VGA (optional) monitor, USB keyboard and mouse, and microphone and speaker with 3.5 mm connectors (optional)
Package Includes
- B024-DUA8-SL DVI/USB 8-Port KVM Switch
- (2) DVI/USB KVM cable kits, 6 ft.
- External power supply w/NEMA 1-15P plug and 5 ft. cord (Input: 100–240V, 50/60 Hz, 0.5A; Output: 5.3V 2.4A)
- RJ11 to DB9 firmware upgrade cable, 6 ft.
- Grounding wire
- Rack-mounting hardware
- Rubber feet
- Owner’s manual
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 512 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| Audio connections | Yes |
| USB 2.0 ports quantity | 1 |
| DVI-I ports quantity | 8 |
| Cable length | 59.1" (1.5 m) |
| Performance | |
| Maximum resolution | 2048 x 1536 pixels |
| Automatic switching | Yes |
| Design | |
| Product colour | Black |
| Cable length | 59.1" (1.5 m) |
| Rack mounting | Yes |
| LED indicators | Yes |
| Certification | TAA, GSA |
| Rack capacity | 1U |
| Housing material | Metal |
| Automatic switching | Yes |
| Country of origin | Taiwan |
| Display | |
| Built-in display | No |
| Power | |
| AC input frequency | 50 - 60 Hz |
| Input current | 2.4 A |
| Power source | AC |
| External power adapter | Yes |
| Input voltage | 100 - 240, 5.3 V |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Video | |
| Maximum resolution | 2048 x 1536 pixels |
| Features | |
| Country of origin | Taiwan |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 17.2" (436.9 mm) |
| Depth | 6.3" (160 mm) |
| Height | 1.73" (43.9 mm) |
| Weight | 6.19 lbs (2.81 kg) |
| Package width | 21.3" (540 mm) |
| Package depth | 9.17" (232.9 mm) |
| Package height | 4.57" (116.1 mm) |
| Package weight | 8 lbs (3.63 kg) |
| Packaging data | |
| Package width | 21.3" (540 mm) |
| Package depth | 9.17" (232.9 mm) |
| Package height | 4.57" (116.1 mm) |
| Package weight | 8 lbs (3.63 kg) |
| Packaging content | |
| AC adapter included | Yes |
| Certificates | |
| Certification | TAA, GSA |
| Other features | |
| Automatic switching | Yes |
| Logistics data | |
| Country of origin | Taiwan |
| Master (outer) case width | 22.2" (564.9 mm) |
| Master (outer) case length | 14.8" (374.9 mm) |
| Master (outer) case height | 10.2" (258.1 mm) |
| Master (outer) case gross weight | 24 lbs (10.9 kg) |
| Products per master (outer) case | 3 pc(s) |
| Master (outer) case GTIN (EAN/UPC) | 10037332205114 |
| Harmonized System (HS) code | 8471.80.1000 |
