CyberPower PDU15MV20F power distribution unit (PDU) 20 AC outlet(s) 0U Black
241.25 CAD
Skip to product information
Out of stock
CyberPower PDU15MV20F power distribution unit (PDU) 20 AC outlet(s) 0U Black
Part number
PDU15MV20F
241.25 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.057 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.

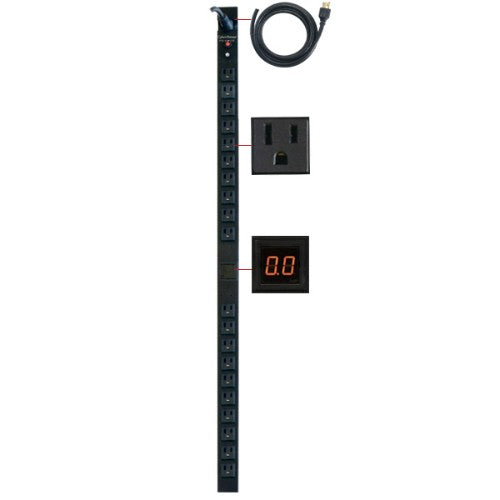

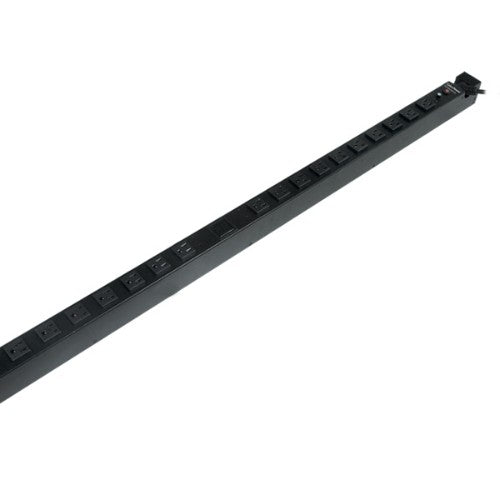

The CyberPower 20-outlet (20 Front) 0U vertical rack mount metered power distribution unit (PDU15MV20F) provides 120V 15A output. It distributes power to 20 NEMA 5-15R receptacles from a single NEMA 5-15P plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It supports vertical, horizontal and wall mount installation, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- 20 NEMA 5-15R (20 Front) output receptacles
- 15-amp electrical capacity with circuit breaker
- 120V AC - 50/60Hz
- 48” 0U vertical rack mount
- Front LCD for real-time load monitoring
- 10-ft. power cord
- 20 NEMA 5-15R (20 Front) output receptacles
- 15-amp electrical capacity with circuit breaker
- 120V AC - 50/60Hz
- 48” 0U vertical rack mount
- Front LCD for real-time load monitoring
- 10-ft. power cord
| Design | |
|---|---|
| PDU types | Metered |
| Mounting | Horizontal/Vertical |
| Display | LCD |
| Product colour | Black |
| Certification | UL1363 ETL, CSA C22.2 |
| Rack capacity | 0U |
| Ports & interfaces | |
| Power plug | NEMA 5–15P |
| AC outlets quantity | 20 AC outlet(s) |
| AC outlet types | NEMA 5–15R |
| Features | |
| Cable length | 120.1" (3.05 m) |
| Certification | UL1363 ETL, CSA C22.2 |
| Management features | |
| Monitoring | Current |
| Ergonomics | |
| Display | LCD |
| Cable length | 120.1" (3.05 m) |
| Power | |
| Nominal input voltage | 120 V |
| Maximum current | 15 A |
| Nominal output voltage | 120 V |
| Power protection features | Overload |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Weight (imperial) | 0.125 lbs |
| Dimensions (W x D x H) (imperial) | 1.75 x 2.25 x 48" |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Technical details | |
| Compliance certificates | RoHS |
