CyberPower's OR1000PFCLCD with pure sine wave output solves the critical compatibility issues of non-sine wave UPS products working with computing systems using Active PFC power supplies (ENERGY STAR 6.0). With PC manufacturers adopting high-efficiency Active PFC power supplies—your equipment may be at risk. CyberPower's innovative UPS technology is an affordable solution that ensures equipment utilizing Active PFC power supplies do not unexpectedly shutdown when switching from AC power to UPS battery power.

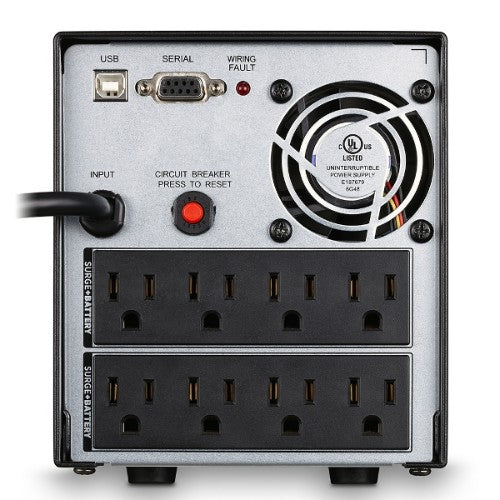

The OR1000PFCLCD unit has a capacity of 1000VA / 700W, eight (8) NEMA 5-15R receptacles and two (2) maintenance-free, user-replaceable 12V/8.5Ah batteries. The front LCD panel displays all major UPS vitals for ease of use and provides user selectable options to customize performance. This unit offers connectivity via one (1) HID USB and one (1) DB9 port. EMI/RFI filters decrease the susceptibility of the load to noise disturbances.
This UPS incorporates microprocessor-based digital control and includes PowerPanel® Business Edition providing the user unsurpassed flexibility and agent/client control of up to 25 clients. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $200,000 Connected Equipment Guarantee.

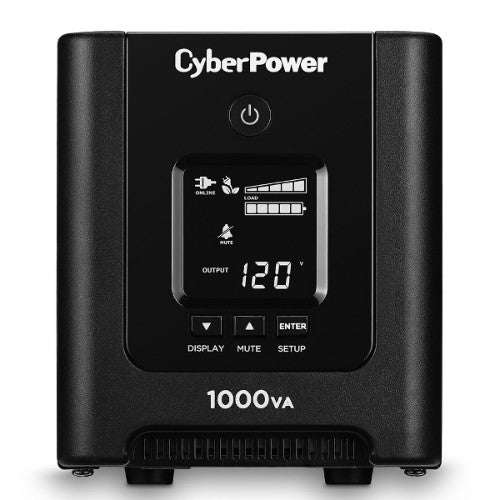

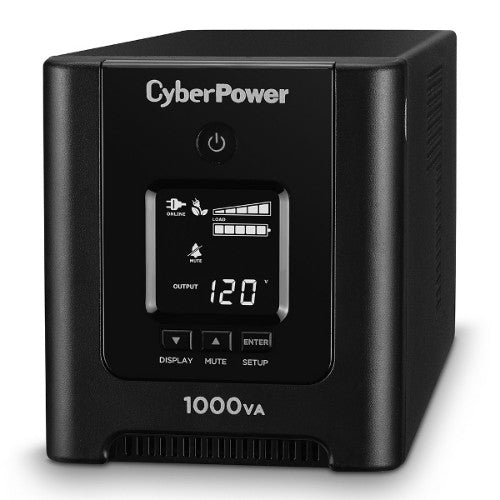

CyberPower OR1000PFCLCD uninterruptible power supply (UPS) Line-Interactive 1 kVA 700 W 8 AC outlet(s)
Part number
OR1000PFCLCD
$531.90 CAD
1000VA / 700W, 8 Outlets, USB, Serial Communication Ports
Description
The CyberPower PFC Sinewave OR1000PFCLCD mini-tower uninterruptible power supply (UPS) with Multifunction LCD and pure sine wave output is Active PFC compatible for safeguarding networking hardware, network-based devices, small office servers, workstations and telecom equipment that use conventional and Active Power Factor Correction (PFC) power supplies. Its Automatic Voltage Regulation (AVR) technology delivers clean and consistent AC power, protecting connected equipment and preventing costly business interruptions. This UPS system is ENERGY STAR® qualified with patented GreenPower UPS™ Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.CyberPower's OR1000PFCLCD with pure sine wave output solves the critical compatibility issues of non-sine wave UPS products working with computing systems using Active PFC power supplies (ENERGY STAR 6.0). With PC manufacturers adopting high-efficiency Active PFC power supplies—your equipment may be at risk. CyberPower's innovative UPS technology is an affordable solution that ensures equipment utilizing Active PFC power supplies do not unexpectedly shutdown when switching from AC power to UPS battery power.
The OR1000PFCLCD unit has a capacity of 1000VA / 700W, eight (8) NEMA 5-15R receptacles and two (2) maintenance-free, user-replaceable 12V/8.5Ah batteries. The front LCD panel displays all major UPS vitals for ease of use and provides user selectable options to customize performance. This unit offers connectivity via one (1) HID USB and one (1) DB9 port. EMI/RFI filters decrease the susceptibility of the load to noise disturbances.
This UPS incorporates microprocessor-based digital control and includes PowerPanel® Business Edition providing the user unsurpassed flexibility and agent/client control of up to 25 clients. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $200,000 Connected Equipment Guarantee.
Specifications
| Power | |
|---|---|
| Output power capacity | 1 kVA |
| Output power | 700 W |
| Input operation voltage (min) | 78 V |
| Input operation voltage (max) | 142 V |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 120 V |
| Surge energy rating | 1030 J |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| Cable length | 70.9" (1.8 m) |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | NEMA 5–15R |
| Power plug | NEMA 5-15P |
| USB 2.0 ports quantity | 1 |
| Performance | |
| UPS topology | Line-Interactive |
| EMI/RFI noise filtering | Yes |
| Surge protection | Yes |
| Power protection features | Overload |
| Automatic Voltage Regulation (AVR) | Yes |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 1 kVA |
| Output power | 700 W |
| Input operation voltage (min) | 78 V |
| Input operation voltage (max) | 142 V |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 120 V |
| Surge energy rating | 1030 J |
| EMI/RFI noise filtering | Yes |
| Surge protection | Yes |
| Power protection features | Overload |
| Automatic Voltage Regulation (AVR) | Yes |
| Input frequency | 50/60 Hz |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 1 |
| Battery recharge time | 8 h |
| Typical backup time at half load | 10 min |
| Typical backup time at full load | 2 min |
| Design | |
| Form factor | Mini Tower |
| Product colour | Black |
| Safety | UL1778 4th, cUL 107.3-05, FCC/DoC Class B |
| Cable length | 70.9" (1.8 m) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 5.39" (137 mm) |
| Depth | 6.42" (163 mm) |
| Height | 13.8" (351 mm) |
| Weight | 24.7 lbs (11.2 kg) |
| Certificates | |
| Safety | UL1778 4th, cUL 107.3-05, FCC/DoC Class B |
