In stock
Provides temporary battery power when the utility power is out.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency
Reduces utlility costs, generates less heat.
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
SmartSlot
Customize UPS capabilities with management cards.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

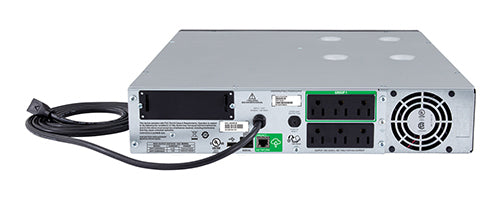

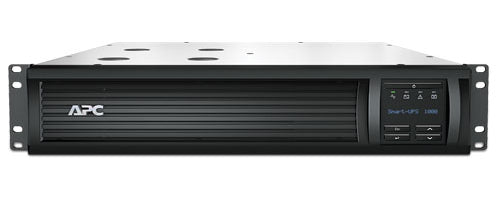

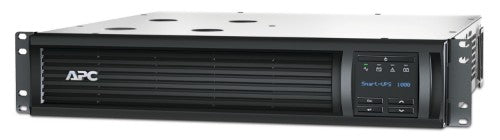

APC SMT1000RM2UC uninterruptible power supply (UPS) Line-Interactive 1 kVA 700 W 6 AC outlet(s)
Part number
SMT1000RM2UC
Regular price
$1,018.98 CAD
Sale price
$999.98 CAD
Smart-UPS 1000VA, LCD, RM 2U, 120V with SmartConnect
Description
Cold-start capableProvides temporary battery power when the utility power is out.
Energy meter
Provides actual kilowatt hours of usage for energy conscious users.
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
High online efficiency
Reduces utlility costs, generates less heat.
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
SmartSlot
Customize UPS capabilities with management cards.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Specifications
| Power | |
|---|---|
| Output power capacity | 1 kVA |
| Output power | 700 W |
| Input operation voltage (min) | 75 V |
| Input operation voltage (max) | 154 V |
| Output operation voltage (min) | 110 V |
| Output operation voltage (max) | 127 V |
| Surge energy rating | 680 J |
| Crest factor | 3:1 |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| Cable length | 96.1" (2.44 m) |
| AC outlets quantity | 6 AC outlet(s) |
| AC outlet types | NEMA 5-15R |
| Power plug | NEMA 5-15P |
| USB port | Yes |
| Serial interface | Yes |
| SmartSlot | Yes |
| Performance | |
| UPS topology | Line-Interactive |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Response time | 10 ms |
| Waveform | Sine |
| Power protection features | Short circuit |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| Noise level | 41 dB |
| LED indicators | Status |
| Audible alarm(s) | Yes |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 1 kVA |
| Web-based management | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Response time | 10 ms |
| Output power | 700 W |
| Input operation voltage (min) | 75 V |
| Input operation voltage (max) | 154 V |
| Output operation voltage (min) | 110 V |
| Output operation voltage (max) | 127 V |
| Surge energy rating | 680 J |
| Waveform | Sine |
| Power protection features | Short circuit |
| Crest factor | 3:1 |
| Auto-restart | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| Noise level | 41 dB |
| Audible alarm(s) | Yes |
| Input frequency | 50/60 Hz |
| Battery | |
| Battery life (max) | 6 year(s) |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 1 |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Cold start | Yes |
| Automatic battery test | Yes |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 2U |
| Product colour | Black |
| Certification | REACH |
| Cable length | 96.1" (2.44 m) |
| LED indicators | Status |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| Harmonized System (HS) code | 85078000 |
| Compliance certificates | RoHS |
| Management features | |
| Web-based management | Yes |
| Weight & dimensions | |
| Width | 17" (432 mm) |
| Depth | 18.8" (477 mm) |
| Height | 3.39" (86 mm) |
| Weight | 55.8 lbs (25.3 kg) |
| Package width | 23.2" (590 mm) |
| Package depth | 24" (610 mm) |
| Package height | 9.25" (235 mm) |
| Package weight | 68.1 lbs (30.9 kg) |
| Packaging data | |
| Package width | 23.2" (590 mm) |
| Package depth | 24" (610 mm) |
| Package height | 9.25" (235 mm) |
| Package weight | 68.1 lbs (30.9 kg) |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Certificates | |
| Certification | REACH |
