TP-Link TL-SG1005P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Part number
TL-SG1005P
$54.73 CAD

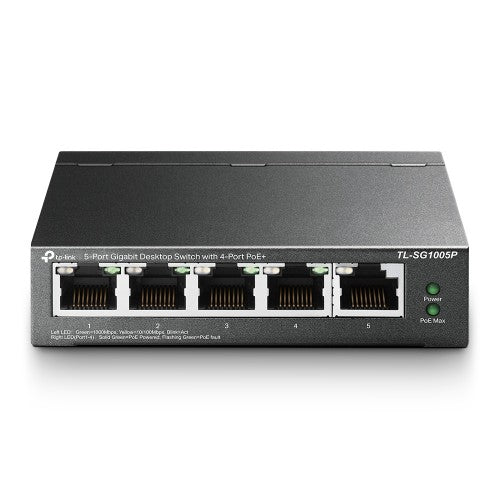

5 10/100/1000Mbps RJ45 Ports
Key Features
- 5 10/100/1000Mbps RJ45 ports

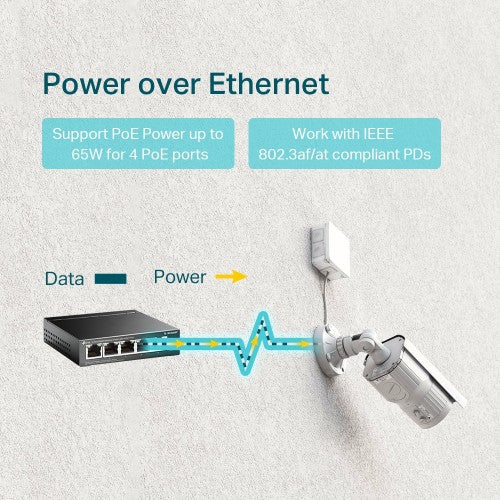

- With four PoE+ ports, transfers data and power on one single cable
- Working with IEEE 802.3af/at compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30W for each PoE port

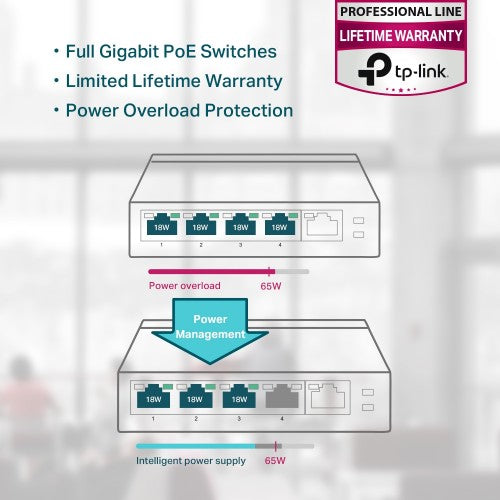

- Supports PoE Power up to 65W for all PoE ports

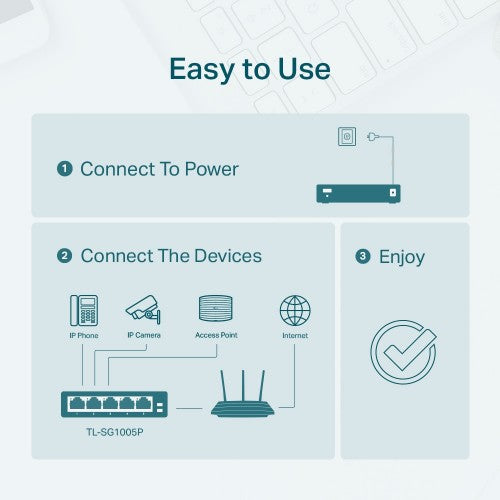

- Requires no configuration and installation
Description
5-Port Gigabit Desktop Switch with 4-Port PoE, 5 Gigabit RJ45 ports including 4 PoE ports, 56W PoE Power supply, steel caseSpecifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3af, IEEE 802.3x |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| MAC address auto-aging supported | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| VLAN support | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| IGMP snooping | Yes |
| Data transmission | |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Security | |
| IGMP snooping | Yes |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Certification | FCC, CE, RoHS |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 220 V |
| AC input frequency | 50 Hz |
| Power consumption (max) | 63.31 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 56 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 3.93" (99.8 mm) |
| Depth | 3.86" (98 mm) |
| Height | 0.984" (25 mm) |
| Packaging content | |
| Quick start guide | Yes |
| Manual | Yes |
| Cables included | AC |
| Packaging data | |
| Package type | Box |
| Quick start guide | Yes |
| Manual | Yes |
| Cables included | AC |
| Performance | |
| Harmonized System (HS) code | 85176990 |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
