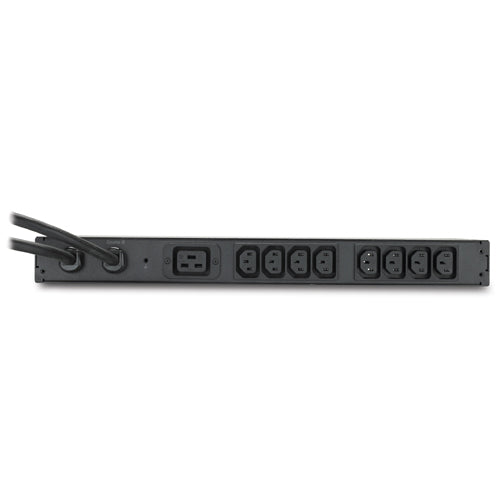

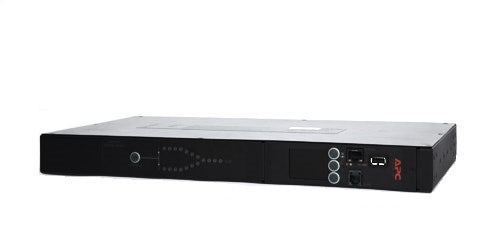

APC AP4430 power distribution unit (PDU) 9 AC outlet(s) 1U Black

APC AP4430 power distribution unit (PDU) 9 AC outlet(s) 1U Black

1,807.81 CAD

Skip to product information
APC AP4430 power distribution unit (PDU) 9 AC outlet(s) 1U Black
1/3

APC AP4430 power distribution unit (PDU) 9 AC outlet(s) 1U Black

Part number AP4430
1,807.81 CAD
Taxes and shipping calculated at checkout.
Out of stock

Enjoy Free Shipping on orders over 2000 CAD

Shipping time varies based your on location.

Specifications
Weight
8.131 kg
Shipping + Returns

Shipping Policy

Ships to: Canada & USA via UPS, DHL, & Canada Post.

Fast Dispatch: Orders before 2 PM EST process same-day.

Options: Standard (Ground) and Express (Air) shipping available.

Heavy Items: Heavy freight usually requires1-2 extra days for Processing

Returns & Refunds

Return Period: Request a return within 14 days of delivery.

Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.

Condition: Items must be returned in original packaging (New or Like New).

Final Sale: Software, licenses, and special orders cannot be returned.

Provides redundant rack mount power to single-corded equipment.

10 kAIC Overcurrent Protection
Provides protection in the event of a significant overcurrent event.

Command line interface
Offers simultaneous remote management access through Telnet and SSH.

Current Monitoring
Monitors the aggregate current draw per power distribution unit.

Cyber security
A cyber-secure connection provides improved security for your infrastructure devices, and machine data forms the basis of operational insights and analytics, aimed at reducing equipment maintenance costs.

Local Current Monitoring Display
The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)

Quick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.

Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

RoHS
Certifies that electronic devices don't contain hazardous metals and flame retardants.

StruxureWare Data Center Expert compatible
Enables centralized management via StruxureWare Data Center Expert.
Design
PDU types Switched
Product colour Black
Rack capacity 1U
Ports & interfaces
AC outlets quantity 9 AC outlet(s)
AC outlet types C13 coupler, C19 coupler, NEMA 6–20P
Output connections (1) IEC 320 C19 (Battery Backup) (8) IEC 320 C13 (Battery Backup)
Power
Nominal input voltage 208 V
Maximum current 20 A
Nominal output voltage 208 V
Maximum total current draw per phase 20 A
AC input frequency 50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH) 1.73 x 9.29 x 17" (44 x 236 x 432 mm)
Weight 10.6 lbs (4.83 kg)
Width 1.73" (44 mm)
Depth 9.29" (236 mm)
Height 17" (432 mm)
Operational conditions
Operating temperature (T-T) -5 - 45 °C
Storage temperature (T-T) -25 - 65 °C
Storage relative humidity (H-H) 5 - 95%
Operating relative humidity (H-H) 5 - 95%
Operating altitude 0 - 118110.2" (0 - 3000 m)
Non-operating altitude 0 - 590551.2" (0 - 15000 m)
Technical details
Compliance certificates RoHS
