StarTech.com DK30A2DH laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black, Silver
211.40 CAD
Skip to product information
In stock
StarTech.com DK30A2DH laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black, Silver
Part number
DK30A2DH
211.40 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.773 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- DUAL 4K 60Hz HYBRID USB-C & USB-A DOCK: Universal USB 3.0 docking station (5Gbps) works with USB-C & USB-A laptops/computers; port replicator features 6-Port USB Type-A hub, Gigabit Ethernet, and 3.5mm audio jacks (headset and mic)
- FLEXIBLE MULTI MONITOR VIDEO: This dual 4K 60Hz universal laptop docking station can connect up to 2 monitors: Dual DisplayPort or Dual HDMI or DP + HDMI displays - supports two extended displays on MacBooks with both the Intel processor or Apple M1/M2 chip

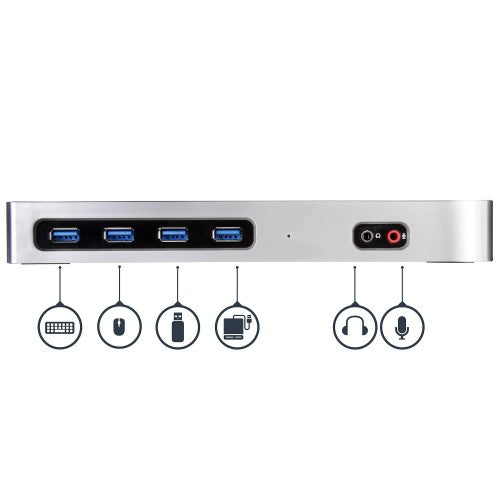

- 6 DOWNSTREAM USB-A PORTS: Hybrid USB C dock has a built-in 6-port USB 3.1/3.2 Gen 1 (5Gbps) hub with USB-A ports on the front and back to support devices such as a keyboard, mouse, flash drive, external hard drive, and printer
- FOR USB-A & USB-C LAPTOPS: DisplayLink certified DL 6950 chipset supports USB-C/Thunderbolt 3 & USB-A PCs; USB-C & USB-A host cables incl; Supports Windows, macOS, Chrome OS, & Ubuntu; This dock does not provide USB-C Power Delivery to charge your laptop
- STARTECH.COM ADVANTAGE: StarTech.com offers a 3-year warranty and free lifetime technical support on all docking stations; with over 3000 products globally, StarTech.com makes hard-to-find easy.
Laptop Docking Station | Mac & Windows® | DisplayPort & HDMI | 4K 60 Hz
This dual-4K docking station offers wide flexibility in setting up your workstation, working with both USB-C and USB-A port laptops and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.
Enhance Productivity with Dual-4K 60Hz Video
Ideal for highly detailed graphics applications, this dual-4K 60Hz docking station enhances your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors. The laptop docking station works with DisplayLink® to support high-resolution monitors, enabling two full 4K 60Hz displays from a single USB connection.
With the dual-4K dock, connect:
• 2x 4K DisplayPort displays (up to 4096 x 2160p @ 60Hz)
• 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
• 1x 4K DisplayPort + 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
Connects to USB-C and USB-A Laptops
The USB 3.0 docking station supports USB-C and USB-A enabled Mac and Windows laptops. This means you can connect newer USB-C or Thunderbolt™ 3 laptops or extend the life of legacy USB 3.0 (Type-A) laptops.
All the Connections You Need
This USB-A & USB-C dock lets you transform your Mac or Windows laptop into a full workstation with six USB 3.0 (Type-A) ports, a Gigabit Ethernet port, and separate 3.5 mm audio and microphone ports for multiple audio connections, all using a single cable.
DK30A2DH is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
This dual-4K docking station offers wide flexibility in setting up your workstation, working with both USB-C and USB-A port laptops and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.
Enhance Productivity with Dual-4K 60Hz Video
Ideal for highly detailed graphics applications, this dual-4K 60Hz docking station enhances your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors. The laptop docking station works with DisplayLink® to support high-resolution monitors, enabling two full 4K 60Hz displays from a single USB connection.
With the dual-4K dock, connect:
• 2x 4K DisplayPort displays (up to 4096 x 2160p @ 60Hz)
• 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
• 1x 4K DisplayPort + 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
Connects to USB-C and USB-A Laptops
The USB 3.0 docking station supports USB-C and USB-A enabled Mac and Windows laptops. This means you can connect newer USB-C or Thunderbolt™ 3 laptops or extend the life of legacy USB 3.0 (Type-A) laptops.
All the Connections You Need
This USB-A & USB-C dock lets you transform your Mac or Windows laptop into a full workstation with six USB 3.0 (Type-A) ports, a Gigabit Ethernet port, and separate 3.5 mm audio and microphone ports for multiple audio connections, all using a single cable.
DK30A2DH is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage

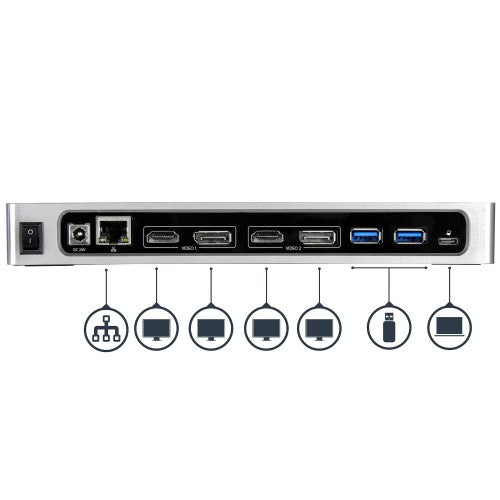

| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| Number of microphone inputs | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Combo headphone/mic port | No |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| 10G support | No |
| Performance | |
| Product colour | Black, Silver |
| Card reader integrated | No |
| Brand compatibility | Any brand |
| Number of displays supported | 2 |
| On/off switch | Yes |
| UASP support | Yes |
| Maximum digital resolution | 4096 x 2160 pixels |
| LED indicators | Power |
| Full duplex | Yes |
| Data transfer rate | 5 Gbit/s |
| Auto MDI/MDI-X | Yes |
| Certification | CE, FCC, REACH |
| Housing material | Aluminum, Plastic |
| USB data transfer rates | 12,480,5000 Mbit/s |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| Input current | 1 A |
| Power consumption (typical) | 40 W |
| Power plug type | Type N |
| Output voltage | 20 V |
| Output current | 2 A |
| Compatible power plug types | AU, EU, JP, UK, US |
| Software | |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |

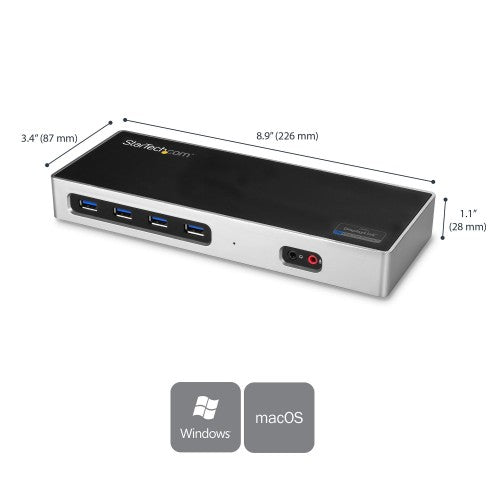

| Width | 3.43" (87 mm) |
| Depth | 8.9" (226 mm) |
| Height | 1.1" (28 mm) |
| Weight | 10.6 oz (301 g) |
| Package width | 5.12" (130 mm) |
| Package depth | 12.5" (318 mm) |
| Package height | 2.05" (52 mm) |
| Package weight | 31.7 oz (900 g) |
| Design | |
| Product colour | Black, Silver |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura |
| LED indicators | Power |
| Certification | CE, FCC, REACH |
| Packaging data | |
| Package width | 5.12" (130 mm) |
| Package depth | 12.5" (318 mm) |
| Package height | 2.05" (52 mm) |
| Package weight | 31.7 oz (900 g) |

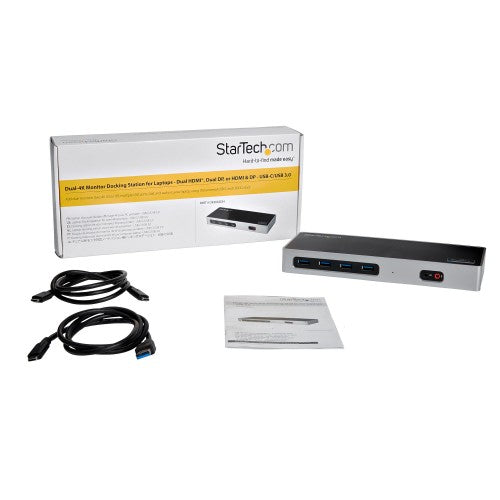

| Packaging content | |
| Quick start guide | Yes |
| Cables included | USB Type-A to USB Type-C, USB Type-C |
| AC adapter included | Yes |
| Technical details | |
| Harmonized System (HS) code | 84733020 |
| Compliance certificates | RoHS |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 12.8" (325 mm) |
| Master (outer) case length | 12.8" (325 mm) |
| Master (outer) case height | 12" (305 mm) |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case width | 12.8" (325 mm) |
| Master (outer) case length | 12.8" (325 mm) |
| Master (outer) case height | 12" (305 mm) |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| USB data transfer rates | 12,480,5000 Mbit/s |
| Number of microphone inputs | 1 |
| Chipset | DisplayLink - DL-6950, VIA/VLI - VL813 |
| Cable length | 5.98" (0.152 m) |
