In stock
PoE Power
A 61W PoE power budget supports up to eight Power over Ethernet devices.
Gigabit Ethernet
Eight gigabit ports provide a 16Gbps switching capacity to support edge network installations.
Compact Design
With a compact and lightweight housing design, this switch is well-suited for desktop installations. Its fanless design is ideal for quiet environments that require silent operation.

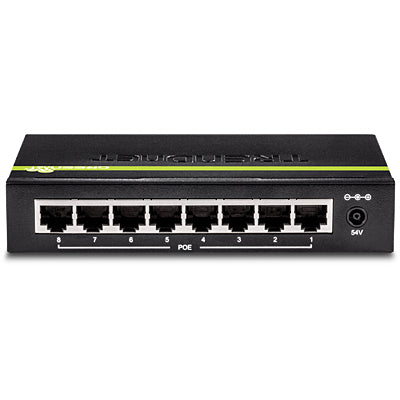

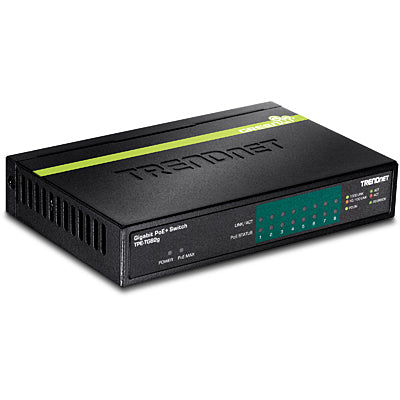

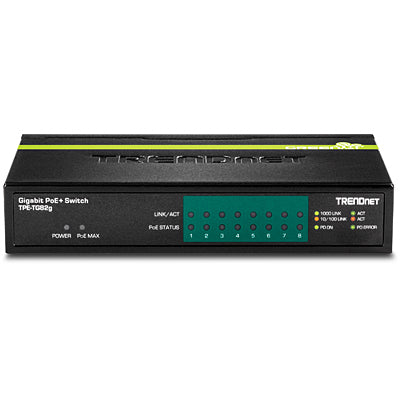

Trendnet TPE-TG82G network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Part number
TPE-TG82G
$126.37 CAD
8-Port Gigabit PoE+ Switch
Key Features
- 8 x Gigabit PoE+ ports
- 61W PoE budget
- 16Gbps switching capacity
- Sturdy metal switch
- Plug and Play installation
- Use with TRENDnet's PoE Splitter to network and power non-PoE devices
- NDAA / TAA compliant (U.S. and Canada only)
Description
The 8-Port Gigabit PoE+ Switch, model TPE-TG82g, delivers data and power over existing Ethernet cables to Power over Ethernet (PoE) devices such as Access Points and IP Cameras. It supports both PoE and PoE+ devices with a 61W PoE budget. Plug and Play this sturdy metal switch for reliable high-speed PoE networking.PoE Power
A 61W PoE power budget supports up to eight Power over Ethernet devices.
Gigabit Ethernet
Eight gigabit ports provide a 16Gbps switching capacity to support edge network installations.
Compact Design
With a compact and lightweight housing design, this switch is well-suited for desktop installations. Its fanless design is ideal for quiet environments that require silent operation.
Specifications
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Virtual Cable Test (VCT) | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Full duplex | Yes |
| VLAN support | Yes |
| Virtual LAN features | VLAN Identifier ( VLAN ID), Voice VLAN |
| Data transmission | |
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Jumbo frames | 9000 |
| Throughput | 11.9 Mpps |
| Jumbo frames support | Yes |
| Security | |
| DHCP features | DHCP snooping |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Metal |
| Certification | CE, FCC |
| Performance | |
| Plug and Play | Yes |
| Maximum data transfer rate | 2000 Mbit/s |
| Buffer size | 128 KB |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Output current | 1.67 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 54 V |
| Power consumption (max) | 36 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 61 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | VLAN Identifier ( VLAN ID), Voice VLAN |
| Weight & dimensions | |
| Width | 5.91" (150 mm) |
| Depth | 3.74" (95 mm) |
| Height | 1.18" (30 mm) |
| Weight | 14.1 oz (400 g) |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC |

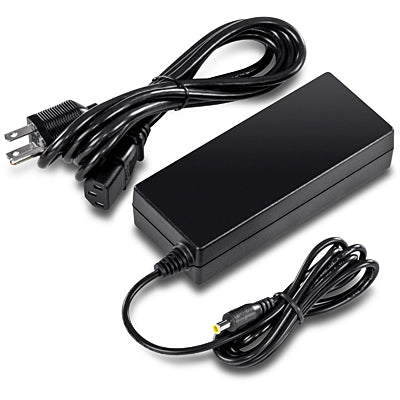

| AC adapter included | Yes |
| Packaging data | |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Certificates | |
| Certification | CE, FCC |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
