Use this wall mount network cabinet to mount your server or networking equipment to the wall with a hinged enclosure for easy access

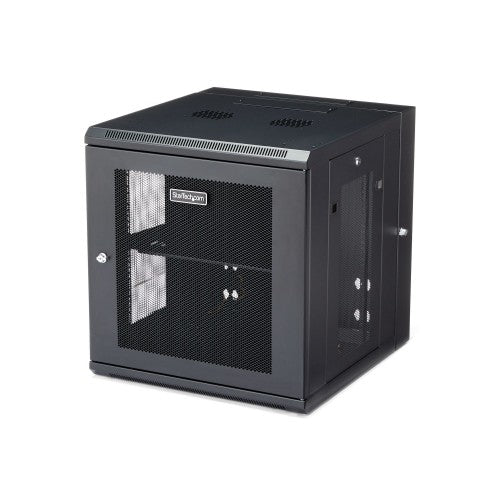

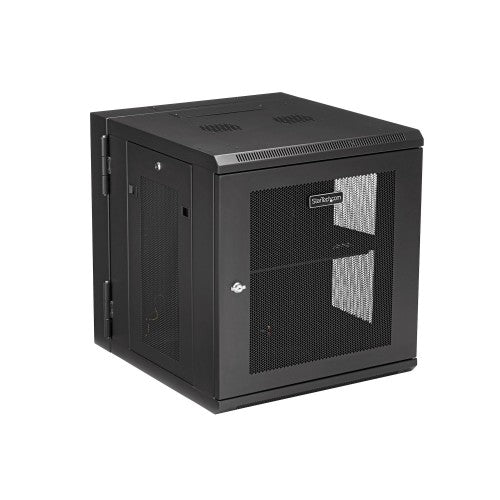

This 12U server or network rack cabinet lets you mount your EIA-310 compliant equipment to the wall, in a secure enclosure that has a hinged rear door for easy access to your equipment. The enclosure features adjustable mounting depth from 2.4 to 19.7 in. to provide a robust storage solution for your rack-mount equipment.

To provide secure stability for your heaviest equipment, this rack offers 4-post mounting, supporting a higher weight capacity per U than 2-post racks and supporting a total load capacity of up to 200 lb. (90 kg).

Save space in your office or server room

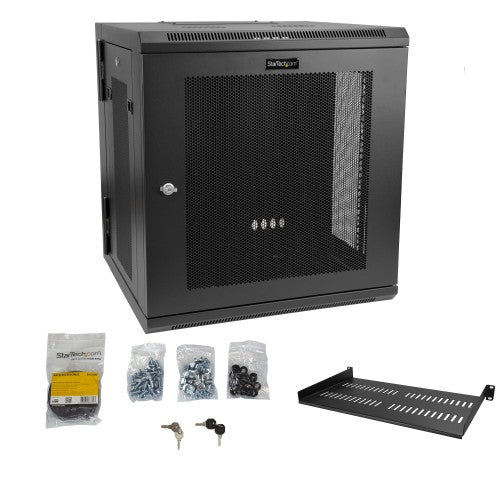

Save valuable floor space by wall-mounting the enclosure. The wall-mounted design makes this enclosure the ideal solution for optimizing equipment storage in your classroom, retail store, server room or office. This rack also includes a 1U shelf that gives you a stable surface for placing equipment that's not rack-mountable or storing your tools.

Easily access your servers and network equipment

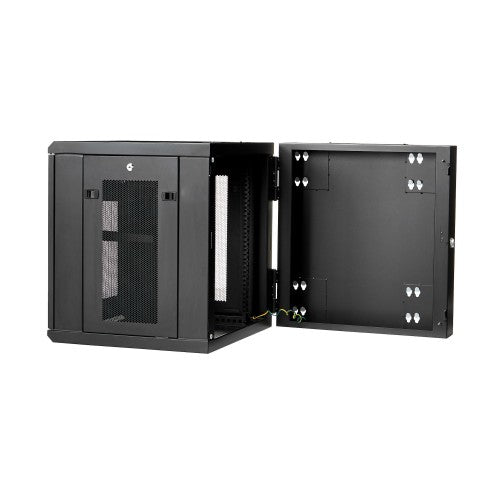

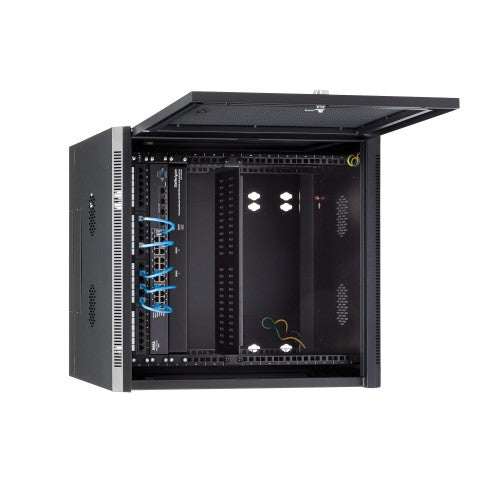

The wall-mount network rack makes it easy to access your equipment and cabling, with a rear hinge that swings the enclosure away from the wall. By flipping the enclosure 180 degrees upon installation, you can reverse the direction of the hinge so that the enclosure can swing open from left or the right, depending on your preference.

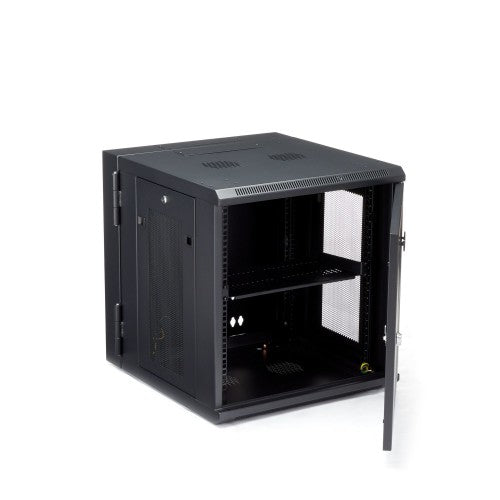

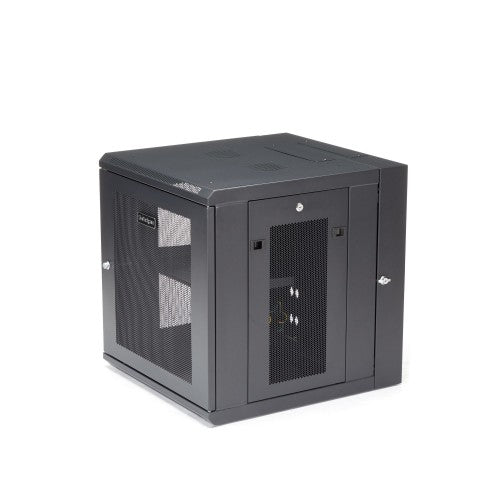

The 12U network cabinet features a removable and reversible front door and removable side panels, each with quick-release mechanisms, so you can easily access your equipment. Plus, each door and panel on this rack features an independent lock, ensuring your equipment is secure.

For hassle-free cable management, the rack includes a 3 meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.

Securely protect your equipment

This server rack enclosure features heavy-duty steel construction, with lockable doors at all entrances. For hassle-free equipment installation, the mounting rails on the rack can be switched for use with square holes and cage nuts, or tapped rails.

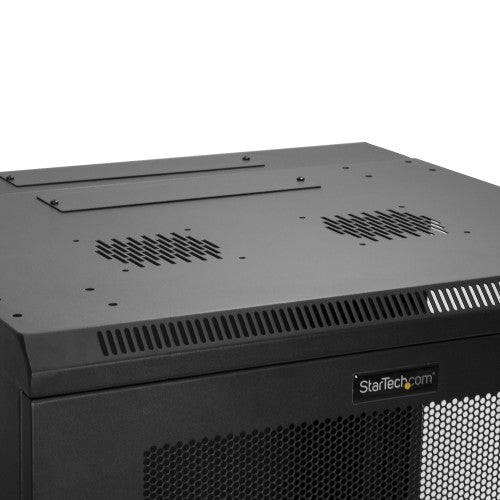

To ensure your equipment is running at an optimal temperature, the server rack/cabinet promotes passive cooling. It features mesh doors and vented top and bottom panels for maximum airflow.

For simple and sturdy mounting, the rack's mounting holes are positioned 16 in. apart, so you can securely attach it to a wall using wall studs.

The StarTech.com Advantage

Weight & dimensions
Package width	28.4" (722 mm)
Package depth	26.6" (675 mm)
Package height	28.3" (720 mm)
Package weight	90.8 lbs (41.2 kg)
Mounting depth (min)	2.36" (6 cm)
Width	24" (610 mm)
Depth	25.8" (655 mm)
Height	25.2" (640 mm)
Inner width	23.4" (59.5 cm)
Inner depth	25.7" (65.2 cm)
Inner height	21.3" (54 cm)
Weight	82.5 lbs (37.4 kg)
Mounting depth (max)	19.7" (50 cm)
Packaging content
Nuts included	Yes
Number of nuts	50
Manual	Yes
Screws included	Yes
Number of screws	50
Features
Castor wheels	No
Adjustable mounting rails	Yes
Removable front door	No
Removable side panels	Yes
Back door construction	Steel
Front door construction	Steel
Side panel construction	Steel
Cable management	Yes
Mounting hole shape	Square
Back door key lock	Yes
Front door key lock	Yes
Type	Wall mounted rack
Side panels included	Yes
Rack capacity	12U
Maximum weight capacity	198.4 lbs (90 kg)
Key lock	Yes
Frame type	Closed
Product design	4-post
Product colour	Black
Certification	CE, REACH
Rack rail thickness	0.0787" (2 mm)
Packaging data
Nuts included	Yes
Number of nuts	50
Manual	Yes
Package width	28.4" (722 mm)
Package depth	26.6" (675 mm)
Package height	28.3" (720 mm)
Package weight	90.8 lbs (41.2 kg)
Screws included	Yes
Number of screws	50
Technical details
Harmonized System (HS) code	85381000
Compliance certificates	CE, RoHS
Rack capacity	12U
Logistics data
Master (outer) case width	26.4" (670 mm)
Master (outer) case length	28.3" (720 mm)
Master (outer) case height	28.3" (720 mm)
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	85381000
Other features
Compliance industry standards	EIA/ECA-310-E
