ATEN VS192 video splitter DisplayPort 2x DisplayPort
165.21 CAD
Skip to product information
5 left
ATEN VS192 video splitter DisplayPort 2x DisplayPort
Part number
VS192
165.21 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.3 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.

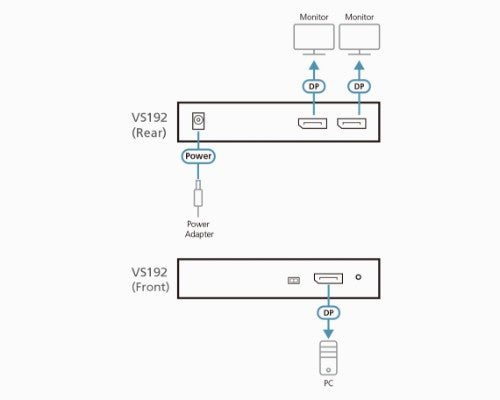

- Connects 1 DisplayPort source to 2 DisplayPort monitors
- Supports DisplayPort 1.2a; HDCP 1.3
- Supports resolutions up to 4096 x 2160 / 3840 x 2160 @ 60 Hz
- Supports MST/ Extend Mode and SST/ Split Mode*
- MST/ Extend Mode:
- Extend a video source across 2 displays with a maximum resolution of 4K.
- SST/ Split Mode:
- Duplicate a single video source to 2 displays with a maximum resolution of 4K on each monitor
- Supports Linkrate: HBR2 (High Bit Rate 2)
- Note:
- * The VS192 will bypass EDID Mode during SST Mode and will detect the resolution of the monitor connected to port 1.
The VS192 2-Port 4K DisplayPort Splitter is the perfect solution for anyone who needs to send one source of DisplayPort high definition video to 2 DisplayPort displays. The VS192, not only splits but also expands DisplayPort audio/video signals on 2 DisplayPort monitors, is ideal for any multi-display application.
The VS192 is compatible with DisplayPort 1.2a and can support up to 4K resolution at 60 Hz, making it effective and ideal for use with all DisplayPort displays in corporate, educational, and commercial settings.
The VS192 is compatible with DisplayPort 1.2a and can support up to 4K resolution at 60 Hz, making it effective and ideal for use with all DisplayPort displays in corporate, educational, and commercial settings.
| Ports & interfaces | |
|---|---|
| Video ports quantity | 2 |
| Video port type | DisplayPort |
| Video out | 2x DisplayPort |
| DC-in jack | Yes |
| Features | |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Maximum resolution | 4096 x 2160 pixels |
| Full HD | Yes |
| HD-Ready | Yes |
| HDCP | Yes |
| Housing material | Metal |
| Product colour | Black |
| Power | |
| Power consumption (typical) | 1.185 W |
| Weight & dimensions | |
| Weight | 10.6 oz (300 g) |
| Dimensions (WxDxH) | 4.92 x 3.15 x 9.84" (125 x 80 x 250 mm) |
| Packaging content | |
| User guide | Yes |
| Manual | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 80% |
| Video | |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Maximum resolution | 4096 x 2160 pixels |
| Full HD | Yes |
| HD-Ready | Yes |
| HDCP | Yes |
| Colour | |
| Product colour | Black |
| Technical details | |
| Video out | 2x DisplayPort |
| Housing material | Metal |
| Colour | Yes |
| Logistics data | |
| Products per master (outer) case | 20 pc(s) |
| Harmonized System (HS) code | 85176990 |
