ATEN VB800 AV extender AV transmitter & receiver Black
107.98 CAD
Skip to product information
Out of stock
ATEN VB800 AV extender AV transmitter & receiver Black
Part number
VB800
107.98 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.09 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Superior video quality – True 4k resolutions of 4096 x 2160 @ 60 Hz (4:4:4) video and standard 1080p (1920 x 1080 @ 60 Hz)
- HDMI (3D, Deep Color, 4K)
- Max. Data Rate 18 Gbps (6 Gbps Per Lane)
- HDMI and HDCP 2.2 compatible
- Supports up to True 4K resolutions when cascaded up to 10 levels

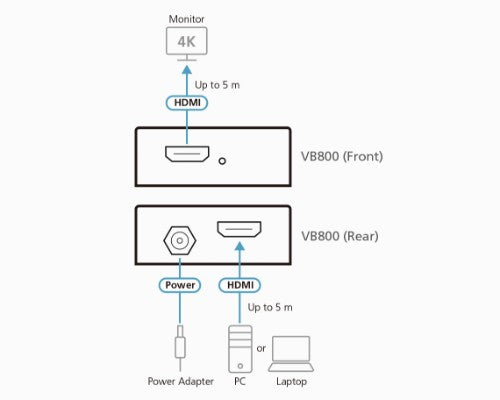

- - Up to 10 m True 4K transmission distance (max. 5 m on the input side and 5 m on the output side)
- - Up to 20 m 1080p transmission distance (max. 10 m on the input side and 10 m on the output side)
- A single unit can be powered from the source device
- Supports HDR10+
- Plug-and-play – No software installation required
- Rack mountable
- * Longer distance transmission is allowed with lower data rates and/or higher quality cable.

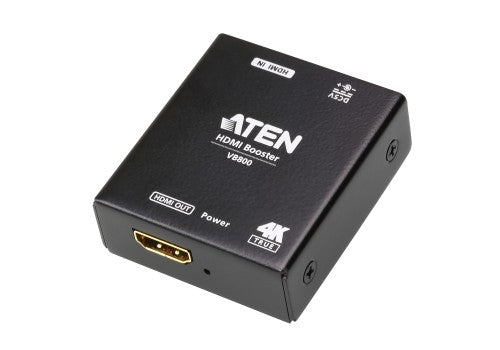

The VB800 is a True 4K HDMI booster providing a solution for long distance transmission. The HDMI booster reliably extends True 4K signals and can be cascaded up to 10 levels, guaranteeing ultimate color and image quality. The VB800 is HDMI compliant and supports all HDMI-enabled devices. The booster can be rack mounted, offering excellent flexibility for managing both work and home settings.
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Plug and Play | Yes |
| Maximum transfer distance | 787.4" (20 m) |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Material | Metal |
| HDCP | Yes |
| Bandwidth | 600 MHz |
| Bandwidth | 18 Gbit/s |
| Product colour | Black |
| Ports & interfaces | |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
| Power | |
| Power consumption (typical) | 0.99 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Dimensions (WxDxH) | 2.2 x 1.93 x 6.69" (56 x 49 x 170 mm) |
| Weight | 3.17 oz (90 g) |
| Packaging content | |
| Mounting kit | Yes |
| Cables included | AC |
