IT Cabinet | 16” Deep | EIA-310 | 4 Post | Weight Cap. 200 lbs. | Lockable | Assembled

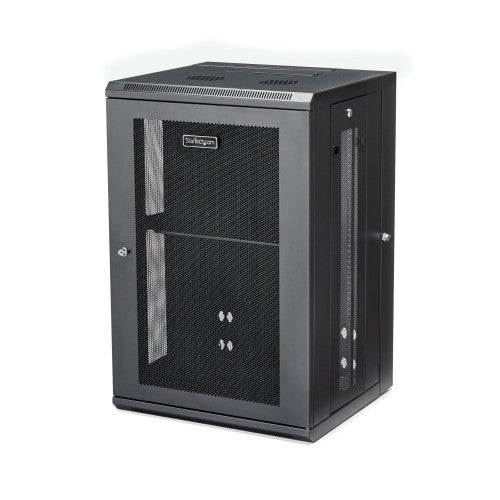

This feature-rich 18U server room rack cabinet is ideal for optimizing equipment storage in network closets edge centers and technology shops with limited space, where there is a need for mountable equipment. It features adjustable mounting rails, mesh doors and panels as well as options for active cooling.

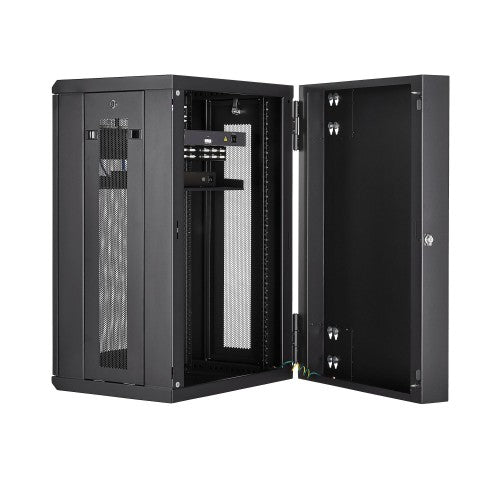

You can access your equipment and cabling from all four sides of this data center rack including the back with a rear hinge that swings the enclosure away from the wall.

Premium Equipment Protection

This wall mount equipment rack features premium-quality steel construction, with secure lockable front and back doors as well as lockable side panels. It features a grounding lug to prevent the build-up of static electricity which can result in electrostatic discharge (ESD), keeping your equipment protected from surges.

This rack also offers dependable protection through both passive and active cooling. The mesh front doors and side panels along with the vents in the top offer passive cooling while the top offers placement support for 120mm fan mounts for an additional active cooling option.

Mount All Types of Equipment

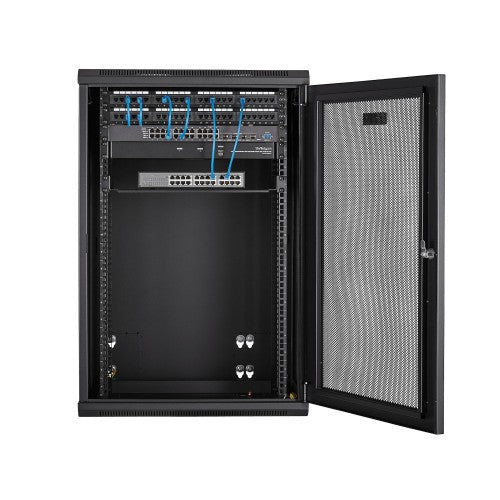

This 4-post server room cabinet has a weight capacity of up to 200 lbs. (90kg) and with a mounting depth from 2 to 16 inches, it can hold a variety of equipment. The mounting rails on the rack can be switched between both square cage nut hole or tapped 12-24 threaded hole styles. For non-mountable equipment, this rack also includes a 1U shelf.

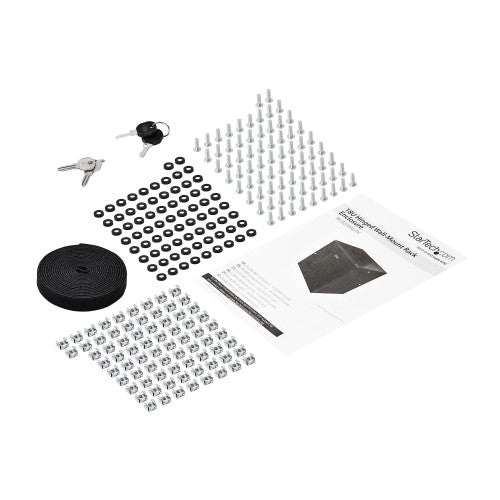

For hassle-free cable management, the rack includes a 3-meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.

Comprehensive Product Testing & Expert Technical Support

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.

Weight & dimensions
Package width	25.2" (640 mm)
Package depth	23.6" (600 mm)
Package height	40.9" (1040 mm)
Package weight	151.5 lbs (68.7 kg)
Mounting depth (min)	2.36" (6 cm)
Width	24" (610 mm)
Depth	21.7" (551 mm)
Height	35.6" (904 mm)
Inner width	23.5" (59.7 cm)
Inner depth	21.7" (55 cm)
Weight	149.3 lbs (67.7 kg)
Mounting depth (max)	16" (40.6 cm)
Packaging content
Nuts included	Yes
Number of nuts	75
Manual	Yes
Screws included	Yes
Number of screws	75
Features
Adjustable mounting rails	Yes
Removable front door	Yes
Back door construction	Steel
Front door construction	Steel
Mounting hole shape	Square
Front door key lock	Yes
Type	Wall mounted rack
Rack capacity	18U
Maximum weight capacity	198.4 lbs (90 kg)
Frame type	Closed
Product design	4-post
Product colour	Black
Material	Steel
Packaging data
Nuts included	Yes
Number of nuts	75
Manual	Yes
Package width	25.2" (640 mm)
Package depth	23.6" (600 mm)
Package height	40.9" (1040 mm)
Package weight	151.5 lbs (68.7 kg)
Screws included	Yes
Number of screws	75
Technical details
Harmonized System (HS) code	85381000
Compliance certificates	CE, RoHS
Rack capacity	18U
Logistics data
Master (outer) case width	46.5" (1180 mm)
Master (outer) case length	29.3" (745 mm)
Master (outer) case height	23.6" (600 mm)
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	85381000
Other features
Compliance industry standards	EIA/ECA-310-E
