Viewsonic PA503S data projector Standard throw projector 3600 ANSI lumens DLP SVGA (800x600) Gray, White
461.32 CAD
Skip to product information
In stock
Viewsonic PA503S data projector Standard throw projector 3600 ANSI lumens DLP SVGA (800x600) Gray, White
Part number
PA503S
461.32 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
3.24 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.

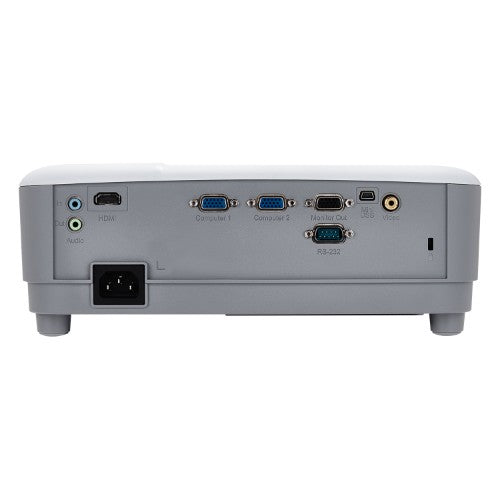

The ViewSonic PA503S price-performance projector features 3,600 lumens, native SVGA 800 x 600 resolution, and intuitive, user-friendly design. Exclusive SuperColor technology offers a wide color gamut for beautiful image production in nearly any environment. The PA503S also features extensive connectivity including HDMI, 2 x VGA, VGA out, Composite Video and audio in/out. An energy-saving SuperEco feature reduces power consumption and extends the lamp life by up to 15,000 hours. With advanced audio-visual features, flexible connectivity options, and an affordable price, the PA503S is ideal for use in education and small business environments.
3D Blu-ray Ready
HDMI Input
Equipped with the latest HDMI, this projector is perfect for connecting to any HDMI-enabled device, and can display 3D images directly from 3D Blu-ray players. 3D images can be viewed with optional ViewSonic PGD-350 Shutter Glasses, or any other compatible 3D glasses.
Quick Power Off
With the Quick Power Off feature enabled, the projector can be quickly powered off in seconds rather than waiting for a cool-down cycle to complete. This lets users pack the projector away without having to worry about the internal fan still running.
Industry-leading Warranty
ViewSonic offers one of the industry's best overall projector warranties with 3-year limited parts and labor, 1-year lamp, and first year free Express Exchange service for an added value worth up to $150.
3D Blu-ray Ready
HDMI Input
Equipped with the latest HDMI, this projector is perfect for connecting to any HDMI-enabled device, and can display 3D images directly from 3D Blu-ray players. 3D images can be viewed with optional ViewSonic PGD-350 Shutter Glasses, or any other compatible 3D glasses.
Quick Power Off
With the Quick Power Off feature enabled, the projector can be quickly powered off in seconds rather than waiting for a cool-down cycle to complete. This lets users pack the projector away without having to worry about the internal fan still running.
Industry-leading Warranty
ViewSonic offers one of the industry's best overall projector warranties with 3-year limited parts and labor, 1-year lamp, and first year free Express Exchange service for an added value worth up to $150.
| Projector | |
|---|---|
| Projector brightness | 3600 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | SVGA (800x600) |
| Screen size compatibility | 30 - 300" |
| Native aspect ratio | 4:3 |
| Projection distance | 43.3 - 511.8" (1.1 - 13 m) |
| Number of colours | 1.073 billion colors |
| Vertical scan range | 23 - 120 Hz |
| Horizontal scan range | 15 - 102 kHz |
| Matrix type | DMD |
| Matrix size | 0.55" |
| Keystone correction, vertical | -40 - 40° |
| Light source | |
| Lamps quantity | 1 lamp(s) |
| Lamp power | 190 W |
| Light source type | Lamp |
| Service life of light source | 4500 h |
| Service life of light source (economic mode) | 15000 h |
| Lens system | |
| Zoom capability | Yes |
| Focus | Manual |
| Throw ratio | 1.96 - 2.15:1 |
| Optical zoom | 1.1x |
| Zoom type | Manual |
| Video | |
| Analog signal format system | NTSC, PAL, PAL 60, SECAM |
| 3D Ready | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1920 x 1200 (WUXGA) |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 1 |
| HDMI connector type | Full-size |
| USB 2.0 ports quantity | 0 |
| Composite video in | 1 |
| Audio (L/R) in | 0 |
| S-Video inputs quantity | 0 |
| Serial interface type | RS-232 |
| PC Audio out | Yes |
| PC Audio in | Yes |
| HDMI version | 1.4 |
| DVI port | No |
| Component video (YPbPr/YCbCr) in | 0 |
| AC (power) in | Yes |
| Network | |
| Ethernet LAN | No |
| Wi-Fi | No |
| Ethernet LAN (RJ-45) ports | 0 |
| Storage | |
| Card reader integrated | No |
| Features | |
| Certification | FCC (ICES-003), cTUVus |
| Multimedia | |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 2 W |
| Design | |
| Product colour | Gray, White |
| Product type | Standard throw projector |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Placement | Desktop |
| Display | |
| Built-in display | No |
| Power | |
| Power source | AC |
| Power consumption (typical) | 260 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Supplier features | |
| Harmonized System (HS) code | 8528620000 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 59015.7" (0 - 1499 m) |
| Weight & dimensions | |
| Width | 11.6" (294 mm) |
| Depth | 8.58" (218 mm) |
| Height | 4.33" (110 mm) |
| Weight | 4.89 lbs (2.22 kg) |
| Package width | 14.4" (365 mm) |
| Package depth | 11.8" (300 mm) |
| Package height | 7.4" (188 mm) |
| Package weight | 7.14 lbs (3.24 kg) |
| Packaging content | |
| Remote control included | Yes |
| Quick start guide | Yes |
| Cables included | AC, VGA |
| Logistics data | |
| Pallet gross width | 35.4" (90 cm) |
| Pallet gross length | 29.1" (74 cm) |
| Pallet gross height | 87" (2.21 m) |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 8528620000 |
| Other features | |
| RS-232 ports | 1 |
