StarTech.com PEX4SFF8639 interface cards/adapter Internal U.2
56.00 CAD
Skip to product information
Out of stock
StarTech.com PEX4SFF8639 interface cards/adapter Internal U.2
Part number
PEX4SFF8639
56.00 CAD
Taxes and shipping calculated at checkout.
Enjoy Free Shipping on orders over 2000 CAD
Shipping time varies based your on location.
Specifications
Weight
0.163 kg
Shipping + Returns
Shipping Policy
Ships to: Canada & USA via UPS, DHL, & Canada Post.
Fast Dispatch: Orders before 2 PM EST process same-day.
Options: Standard (Ground) and Express (Air) shipping available.
Heavy Items: Heavy freight usually requires1-2 extra days for Processing
Returns & Refunds
Return Period: Request a return within 14 days of delivery.
Restocking Fee: 20% fee applies to non-defective/change-of-mind returns.
Condition: Items must be returned in original packaging (New or Like New).
Final Sale: Software, licenses, and special orders cannot be returned.
- Boost system speed and performance by adding a PCIe NVMe U.2 SSD to your PC
- Simplify system builds with a U.2 to PCIe adapter that mounts your SSD directly to the adapter, with no need for adapter cables
- PCI Express 4.0 x4 lane host adapter
- Compatible with x4 PCIe 4.0 motherboards, and backward compatible with PCIe 3.0 / 2.0 / 1.0
- OS independent with no drivers required, for a fast, hassle-free setup
Mount a 2.5" U.2 NVMe SSD into your desktop computer or server, using an available PCIe expansion slot
Get ultra-fast data access by adding an NVMe U.2 SSD to your computer. This U.2 to PCIe adapter lets you add a high-speed, U.2 (4-lane PCIe) 2.5" NVMe SSD, such as the Intel® 750 Series drive, to a PC with an available x4 PCI Express expansion slot.
You can mount the PCIe U.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.
Boost your system speed and performance
The expansion card lets you take full advantage of the fast performance and compact size of PCIe U.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an NVMe U.2 PCIe-based SSD through ultra-fast x4 PCIe. With the U.2 PCIe-based drive in place, the adapter gives your computer a significant speed boost.

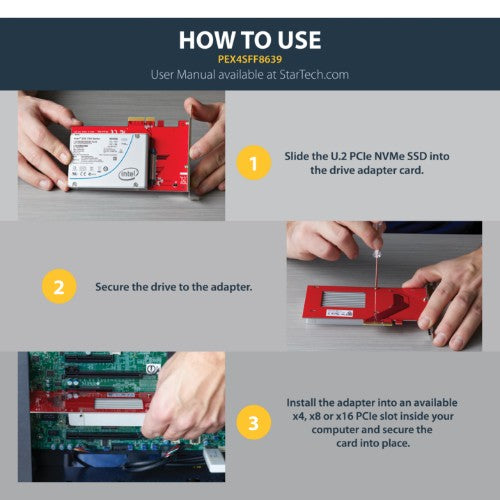

Easy to install
The expansion card is equipped with a full-profile bracket and doesn't require an adapter cable for installation, this helps to reduce clutter and simplifies system builds. The drive connects directly to the SFF-8639 connector on the adapter, and the adapter connects directly to the computer motherboard.
The adapter is compatible with PCIe 4.0 motherboards and is also backward compatible with PCIe 3.0 / 2.0 / 1.0.
The PEX4SFF8639 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Get ultra-fast data access by adding an NVMe U.2 SSD to your computer. This U.2 to PCIe adapter lets you add a high-speed, U.2 (4-lane PCIe) 2.5" NVMe SSD, such as the Intel® 750 Series drive, to a PC with an available x4 PCI Express expansion slot.
You can mount the PCIe U.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.
Boost your system speed and performance
The expansion card lets you take full advantage of the fast performance and compact size of PCIe U.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an NVMe U.2 PCIe-based SSD through ultra-fast x4 PCIe. With the U.2 PCIe-based drive in place, the adapter gives your computer a significant speed boost.
Easy to install
The expansion card is equipped with a full-profile bracket and doesn't require an adapter cable for installation, this helps to reduce clutter and simplifies system builds. The drive connects directly to the SFF-8639 connector on the adapter, and the adapter connects directly to the computer motherboard.
The adapter is compatible with PCIe 4.0 motherboards and is also backward compatible with PCIe 3.0 / 2.0 / 1.0.
The PEX4SFF8639 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Host interface | PCIe |
| Output interface | U.2 |
| Expansion card standard | PCIe 4.0 |
| Performance | |
| Plug and Play | Yes |
| Hot-swap | No |
| Product colour | Red |
| Harmonized System (HS) code | 84733020 |
| Design | |
| Internal | Yes |
| Hot-swap | No |
| Product colour | Red |
| Certification | CE, FCC |
| LED indicators | Activity |
| Features | |
| Plug and Play | Yes |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 15 - 90% |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |

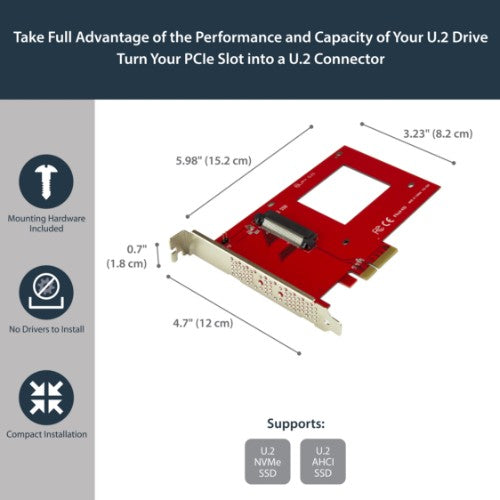

| Width | 4.8" (122 mm) |
| Depth | 6.5" (165 mm) |
| Height | 0.866" (22 mm) |
| Weight | 2.29 oz (65 g) |
| Package width | 6.3" (160 mm) |
| Package depth | 8.66" (220 mm) |
| Package height | 1.77" (45 mm) |
| Package weight | 5.68 oz (161 g) |
| Packaging data | |
| Quick installation guide | Yes |
| Package width | 6.3" (160 mm) |
| Package depth | 8.66" (220 mm) |
| Package height | 1.77" (45 mm) |
| Package weight | 5.68 oz (161 g) |
| Screws included | Yes |
| Logistics data | |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 13.4" (340 mm) |
| Master (outer) case length | 17.7" (450 mm) |
| Master (outer) case height | 19.3" (490 mm) |
| Harmonized System (HS) code | 84733020 |
| Packaging content | |
| Quick installation guide | Yes |
| Screws included | Yes |
