The CyberPower Smart App Sinewave PR1000LCD mini-tower uninterruptible power supply (UPS) with LCD Control Panel and pure sine wave output is Active PFC compatible for safeguarding mission-critical servers, telecom equipment, VoIP and internetworking hardware that require seamless pure sine wave power. Its full Automatic Voltage Regulation (AVR) boost/buck technology delivers a consistent and clean AC power, protecting connected equipment and preventing costly business interruptions. Patented GreenPower UPS advanced circuitry reduces UPS energy costs by up to 75% compared to competitive models.
The LCD control panel provides 41 different settings to check status and customize the operating settings for the PR1000LCD, plus it can be removed and mounted separately from the UPS for ease of use regardless of where the UPS is installed. Functions include menus for checking power status on (11) different parameters, (23) settings for setup and control of the UPS, (3) battery test & calibration options, and (4) selections in the Log menu. With its attached cable the LCD control panel can be removed from the UPS and relocated up to 4.5 FT away from the UPS for ease of viewing when installed in hard to reach locations.
The PR1000LCD unit has a capacity of 1000VA/700Watts, six (6) NEMA 5-15R receptacles and two (2) maintenance-free, user-replaceable 12V/12.0Ah batteries. This unit offers connectivity via one (1) HID USB, one (1) DB9 serial and one (1) emergency power off (EPO) port. EMI/RFI filters increase the immunity of the load to noise disturbances.
This UPS unit incorporates microprocessor-based fully digital control and includes PowerPanel Business Edition providing the user unsurpassed flexibility and control. An optional SNMP / HTTP Remote Management adapter (RMCARD202) supports remote management and control of the PR1000LCD through a standard web browser. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $375,000 Connected Equipment Guarantee.

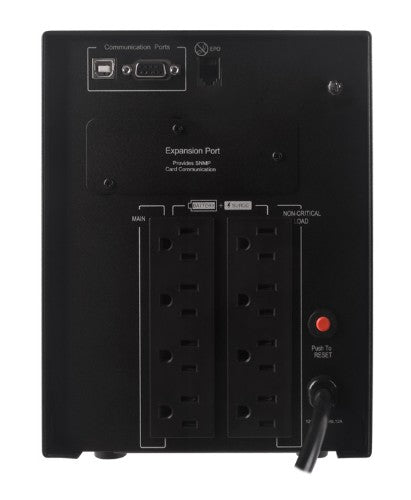

CyberPower PR1000LCD uninterruptible power supply (UPS) 1 kVA 700 W 8 AC outlet(s)
Part number
PR1000LCD
$899.94 CAD
1000VA, 700W, 6 x NEMA 5-15R Out, 1 x USB, 1 x DB-9, 1 x EPO, EMI/RFI Filters, Mini-Tower
Description
Smart App UPS | Network and ServersThe CyberPower Smart App Sinewave PR1000LCD mini-tower uninterruptible power supply (UPS) with LCD Control Panel and pure sine wave output is Active PFC compatible for safeguarding mission-critical servers, telecom equipment, VoIP and internetworking hardware that require seamless pure sine wave power. Its full Automatic Voltage Regulation (AVR) boost/buck technology delivers a consistent and clean AC power, protecting connected equipment and preventing costly business interruptions. Patented GreenPower UPS advanced circuitry reduces UPS energy costs by up to 75% compared to competitive models.
The LCD control panel provides 41 different settings to check status and customize the operating settings for the PR1000LCD, plus it can be removed and mounted separately from the UPS for ease of use regardless of where the UPS is installed. Functions include menus for checking power status on (11) different parameters, (23) settings for setup and control of the UPS, (3) battery test & calibration options, and (4) selections in the Log menu. With its attached cable the LCD control panel can be removed from the UPS and relocated up to 4.5 FT away from the UPS for ease of viewing when installed in hard to reach locations.
The PR1000LCD unit has a capacity of 1000VA/700Watts, six (6) NEMA 5-15R receptacles and two (2) maintenance-free, user-replaceable 12V/12.0Ah batteries. This unit offers connectivity via one (1) HID USB, one (1) DB9 serial and one (1) emergency power off (EPO) port. EMI/RFI filters increase the immunity of the load to noise disturbances.
This UPS unit incorporates microprocessor-based fully digital control and includes PowerPanel Business Edition providing the user unsurpassed flexibility and control. An optional SNMP / HTTP Remote Management adapter (RMCARD202) supports remote management and control of the PR1000LCD through a standard web browser. A Three-Year Warranty ensures that this UPS has passed our highest quality standards in design, assembly, material or workmanship and further protection is offered by a $375,000 Connected Equipment Guarantee.
Specifications
| Power | |
|---|---|
| Output power capacity | 1 kVA |
| Output power | 700 W |
| Input operation voltage (min) | 75 V |
| Input operation voltage (max) | 154 V |
| Surge energy rating | 1030 J |
| Emergency Power Off (EPO) | Yes |
| Input frequency | 47/63 Hz |
| Ports & interfaces | |
| Cable length | 70.9" (1.8 m) |
| AC outlets quantity | 8 AC outlet(s) |
| AC outlet types | NEMA 5–15R |
| Power plug | NEMA 5-15P |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 1 |
| Battery | |
| Battery type | 12V/12AH |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of battery cells | 2 |
| Battery recharge time | 8 h |
| Typical backup time at half load | 24.5 min |
| Typical backup time at full load | 7 min |
| Hot-swap battery | Yes |
| Performance | |
| EMI/RFI noise filtering | Yes |
| Power protection features | Overload |
| LED indicators | Battery replacement |
| Audible alarm(s) | Yes |
| Features | |
| Output power capacity | 1 kVA |
| Output power | 700 W |
| Input operation voltage (min) | 75 V |
| Input operation voltage (max) | 154 V |
| Surge energy rating | 1030 J |
| EMI/RFI noise filtering | Yes |
| Emergency Power Off (EPO) | Yes |
| Power protection features | Overload |
| Audible alarm(s) | Yes |
| Input frequency | 47/63 Hz |
| Design | |
| Form factor | Mini Tower |
| Product colour | Black |
| Certification | UL1778, cUL 107.3, FCC DOC Class A |
| Cable length | 70.9" (1.8 m) |
| LED indicators | Battery replacement |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Technical details | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 6.7" (170.2 mm) |
| Depth | 17" (431.8 mm) |
| Height | 8.7" (221 mm) |
| Weight | 44.1 lbs (20 kg) |
| Packaging data | |
| Bundled software | PowerPanel |
| Certificates | |
| Certification | UL1778, cUL 107.3, FCC DOC Class A |
| Other features | |
| Battery type | 12V/12AH |
| Overload protection | Yes |
| Nominal output voltage | 120 V |
| Management platform | SNMP/HTTP |
| Compatible operating systems | Windows 2000, 2003, XP 32/64, Vista 32/64, 7, Server 2008. |
| Packaging content | |
| Bundled software | PowerPanel |
