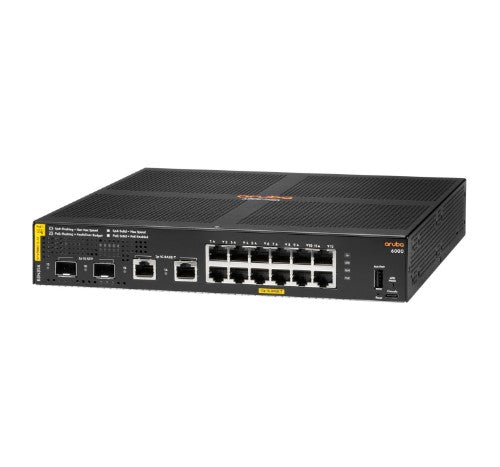

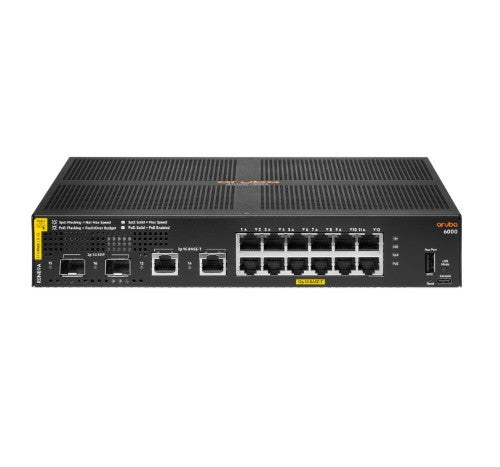

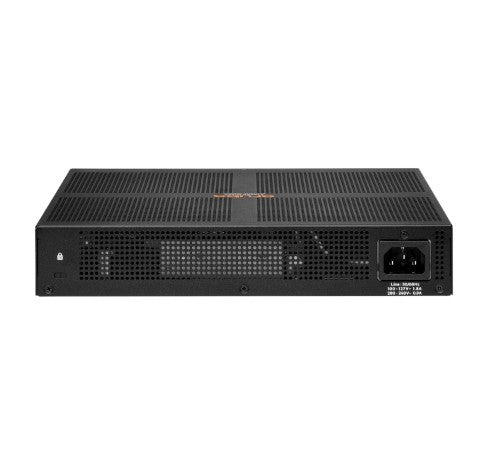

HPE Aruba Networking Aruba 6000 12G Class4 PoE 2G/2SFP 139W Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U
Part number
R8N89A#ABA
$816.28 CAD
HPE Aruba Networking Aruba 6000 12G Class4 PoE 2G/2SFP 139W, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting, 1U
Description
HPE Aruba Networking Aruba 6000 12G Class4 PoE 2G/2SFP 139W. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 12, Console port: USB. MAC address table: 8192 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1USpecifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Network | |
| IGMP snooping | Yes |
| IPv6 FIB entries | 128 |
| IPv4 FIB entries | 256 |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Virtual LAN features | |
| VLAN support | Yes |
| IPv4 & IPv6 features | |
| IPv6 FIB entries | 128 |
| IPv4 FIB entries | 256 |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Performance | |
| Stackable | No |
| Packet buffer memory | 12.38 MB |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 16384 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Console port | USB |
| Data transmission | |
| MAC address table | 8192 entries |
| Switching capacity | 32 Gbit/s |
| Throughput | 23.8 Mpps |
| Latency (1 Gbps) | 2.3 µs |
| Packet buffer memory | 12.38 MB |
| Security | |
| Authentication | MAC-based authentication |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| IPv6 FIB entries | 128 |
| IPv4 FIB entries | 256 |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
| Design | |
| Rack mounting | Yes |
| Stackable | No |
| Form factor | 1U |
| Power | |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 139 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 90% |
| Weight & dimensions | |
| Width | 10" (254 mm) |
| Depth | 10" (255 mm) |
| Height | 1.73" (44 mm) |
| Weight | 6.17 lbs (2.8 kg) |
