With up to seven 160 MHz channels, the APs help maximize performance for low-latency, bandwidth-hungry applications.
It is designed for low power indoor environments (LPI).
The HPE Aruba Networking unique ultra tri-band filtering mitigates interference among 5 GHz and 6 GHz radios and prevents gaps in channel coverage.
Since only Wi-Fi 6E enabled devices can operate in the 6 GHz band, it is less congested with no interference from legacy devices.
Unique HPE Aruba Networking capabilities include ClientMatch, Advanced Cellular Coexistence, and Intelligent Power Monitoring to optimize user experience and energy use.
Cloud, controller, or controllerless operation modes address all campus, branch and remote use cases.

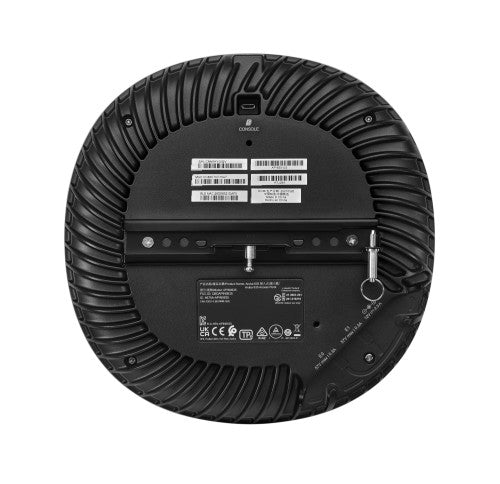

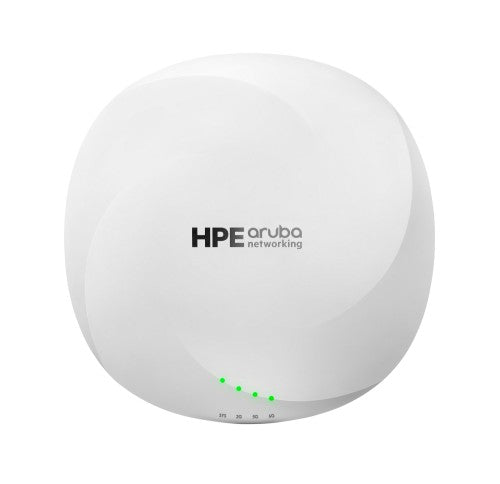

HPE Aruba Networking AP-635 (RW) Tri Radio 2x2 Wi-Fi 6E Internal Antennas 5-pack Campus Access Point
HPE Aruba Networking AP-635 (RW) Tri Radio 2x2 Wi-Fi 6E Internal Antennas 5-pack Campus Access Point
Part number
S3J35A
$7,158.90 CAD
HPE Aruba Networking AP-635 (RW) Tri Radio 2x2 Wi-Fi 6E Internal Antennas 5-pack Campus Access Point, 2.4 GHz, 5 GHz, 6 GHz, 2400 Mbit/s, WPA, WPA2, WPA3, 100,1000,2500 Mbit/s
Reasons To Buy
More Capacity and Wider Channels with Wi-Fi 6E
The HPE Aruba Networking 630 Series Campus Access Points deliver a maximum aggregate 3.9 Gbps data rate for higher throughput and faster speeds.With up to seven 160 MHz channels, the APs help maximize performance for low-latency, bandwidth-hungry applications.
It is designed for low power indoor environments (LPI).
Less Interference and Fewer Coverage Gaps
The HPE Aruba Networking 630 Series Campus Access Points provide comprehensive tri-band coverage using three radios.The HPE Aruba Networking unique ultra tri-band filtering mitigates interference among 5 GHz and 6 GHz radios and prevents gaps in channel coverage.
Since only Wi-Fi 6E enabled devices can operate in the 6 GHz band, it is less congested with no interference from legacy devices.
Extends capabilities of Wi-Fi 6 (802.11ax) APs
HPE Aruba Networking 630 Series Campus Access Points are based on the 802.11ax standard so multi-user efficiency and security features are applied to Wi-Fi 6E.Unique HPE Aruba Networking capabilities include ClientMatch, Advanced Cellular Coexistence, and Intelligent Power Monitoring to optimize user experience and energy use.
Ensures Business Continuity and High Availability
High availability with two HPE Smart Rate Ethernet ports for 1-2.5 Gbps to offer true hitless failover for both data and power.Cloud, controller, or controllerless operation modes address all campus, branch and remote use cases.
Description
HPE Aruba Networking AP-635 (RW) Tri Radio 2x2 Wi-Fi 6E Internal Antennas 5-pack Campus Access Point. 2.4 GHz, 5 GHz, 6 GHz, Maximum data transfer rate: 2400 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Ethernet LAN data rates: 100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product color: WhiteSpecifications
| Performance | |
|---|---|
| Maximum data transfer rate | 2400 Mbit/s |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Frequency band | 2.4/5/6 GHz |
| GPS (satellite) | Yes |
| Networking standards | IEEE 802.15.4 |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Certification | None |
| MIMO | Yes |
| Features | |
| 6 GHz | Yes |
| Maximum data transfer rate | 2400 Mbit/s |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Frequency band | 2.4/5/6 GHz |
| GPS (satellite) | Yes |
| Networking standards | IEEE 802.15.4 |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| MIMO | Yes |
| Security | |
| Security algorithms | WPA, WPA2, WPA3 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Ceiling |
| Product colour | White |
| Certification | None |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 7 dBi |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Technical details | |
| Compliance certificates | Low Voltage Directive (LVD) |
| Certificates | |
| Certification | None |
| Compliance certificates | Low Voltage Directive (LVD) |
| Weight & dimensions | |
| Width | 8.66" (220 mm) |
| Depth | 1.97" (50 mm) |
| Height | 8.66" (220 mm) |
| Weight | 2.87 lbs (1.3 kg) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 100% |
