This DisplayPort KVM Switch enables users to switch between four desktops equipped with USB-A and DisplayPort. It facilitates sharing a 4K 60Hz DisplayPort monitor, a keyboard, mouse, two USB 5Gbps devices, a stereo audio output device, and four USB 2.0 devices.
High-Resolution 4K 60Hz Video
This KVM supports resolutions up to 4K 60Hz, making it ideal for applications such as CAD/CAM, video editing, and content creation. In addition, its support for High Dynamic Range (HDR) enhances contrast, brightness, color, and overall vibrancy.
Customizable Switching
This universal KVM switch offers hotkey and push-button switching. Hotkeys allow independent switching of audio and video, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey inputs, and LEDs provide visual status feedback for the selected host.
Universal Compatibility
The TAA-compliant KVM Switch offers universal compatibility and works with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM provides BIOS/UEFI control and is compatible with all hardware platforms, including Intel, AMD, and Apple Silicon (M1/M2/M3).
Reliable Performance
The rugged metal case helps prevent electromagnetic interference (EMI). 8kV Air/6kV Contact ESD protection enhances the reliability and longevity of the KVM. The included set of rubber feet protect the work surface from scratches and keep KVM in place during operation.
The StarTech.com Advantage

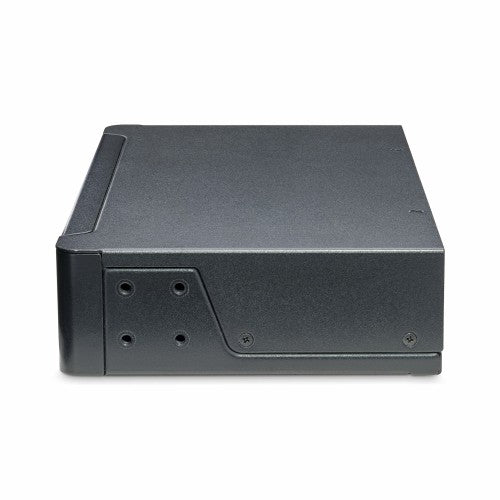

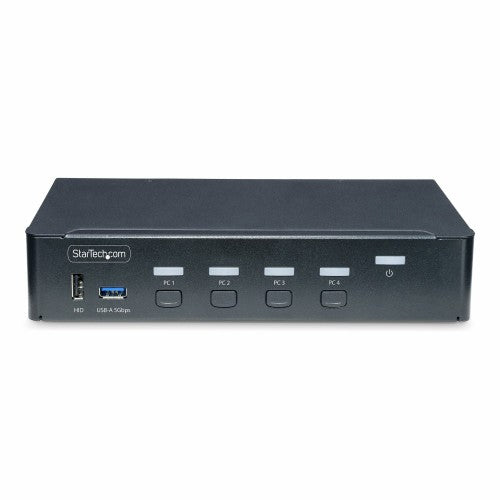

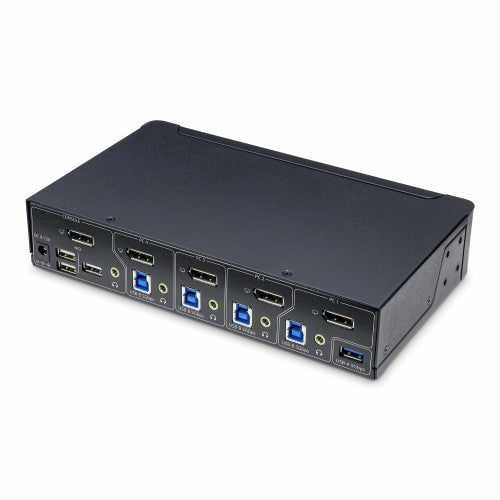

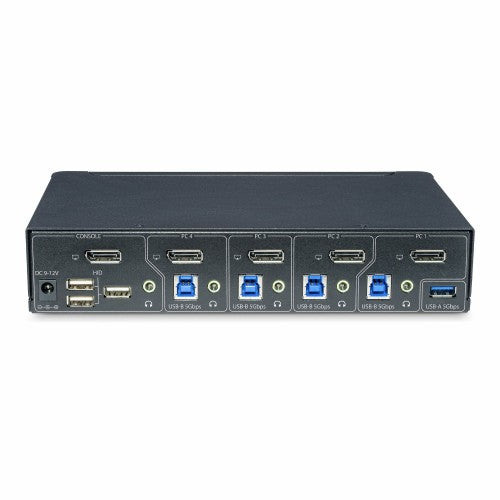

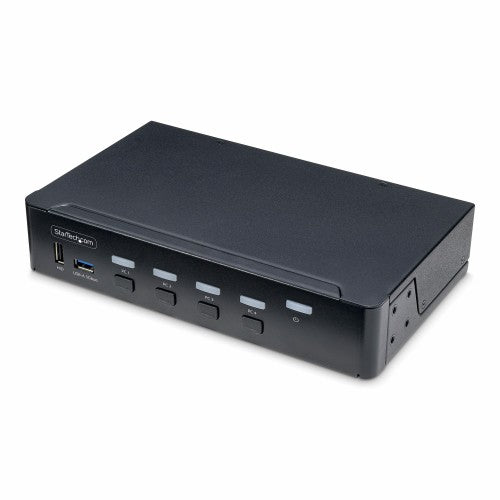

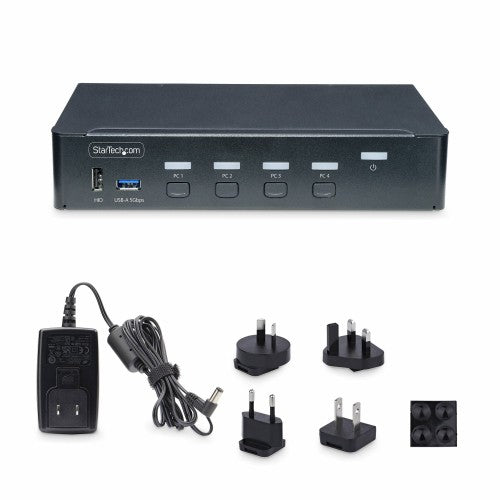

StarTech.com P4AD122-KVM-SWITCH KVM switch Rack mounting Black
Part number
P4AD122-KVM-SWITCH
$618.65 CAD
StarTech.com 4-Port DisplayPort KVM Switch, Single 4K 60Hz Monitor, 6x USB Ports, Hotkey Switching, TAA Compliant
Key Features
- FAST SWITCHING 4K 60HZ KVM: Share one set of peripherals, including a mouse, keyboard, USB 5Gbps hub, and 4K 60Hz DisplayPort monitor, between four DisplayPort-enabled desktops; Ideal for CAD/CAM, video editing, and content creation applications
- MULTIPLE SWITCHING OPTIONS: Fast Switching via push-buttons or hotkeys with an audible buzzer providing confirmation; LEDs provide quick visual port selection status; Listen to audio from one computer while controlling another
- UNIVERSAL COMPATIBILITY: TAA-Compliant KVM Switch works with any operating system including Windows, macOS, ChromeOS, and Linux; Compatible with all hardware platforms such as Intel and AMD
- DURABLE DESIGN: Metal housing helps prevent Electro-magnetic Interference (EMI); 8kV Air/6kV Contact ESD protection enhances the reliability and longevity of the KVM; Included rubber feet protect the work surface and keep KVM in place during operation
- TECHNICAL SPECIFICATIONS: KVM Switch is DisplayPort 1.2 compliant, supporting resolutions up to 4K 60Hz, HDR10, and HDCP 1.4; Supports DisplayPort Audio and 3.5mm analog audio; 4x USB HID Ports; 2x USB 5Gbps Hub Ports; OS Independent
Description
Share a mouse, keyboard, USB 5Gbps hub, audio output device, and 4K 60Hz DisplayPort display between four DisplayPort-enabled computersThis DisplayPort KVM Switch enables users to switch between four desktops equipped with USB-A and DisplayPort. It facilitates sharing a 4K 60Hz DisplayPort monitor, a keyboard, mouse, two USB 5Gbps devices, a stereo audio output device, and four USB 2.0 devices.
High-Resolution 4K 60Hz Video
This KVM supports resolutions up to 4K 60Hz, making it ideal for applications such as CAD/CAM, video editing, and content creation. In addition, its support for High Dynamic Range (HDR) enhances contrast, brightness, color, and overall vibrancy.
Customizable Switching
This universal KVM switch offers hotkey and push-button switching. Hotkeys allow independent switching of audio and video, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey inputs, and LEDs provide visual status feedback for the selected host.
Universal Compatibility
The TAA-compliant KVM Switch offers universal compatibility and works with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM provides BIOS/UEFI control and is compatible with all hardware platforms, including Intel, AMD, and Apple Silicon (M1/M2/M3).
Reliable Performance
The rugged metal case helps prevent electromagnetic interference (EMI). 8kV Air/6kV Contact ESD protection enhances the reliability and longevity of the KVM. The included set of rubber feet protect the work surface from scratches and keep KVM in place during operation.
The StarTech.com Advantage
Specifications
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Audio connections | Yes |
| DisplayPorts quantity | 4 |
| DisplayPort version | 1.2 |
| Headphone outputs | 4 |
| DC-in jack | Yes |
| Console USB ports quantity | 4 |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Console DisplayPorts ports quantity | 1 |
| HDCP | Yes |
| Performance | |
| Data transfer rate (max) | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Plug and Play | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Scan interval | 3,8,15,30 s |
| HDCP | Yes |
| Chipset | GL3523 |
| Audio channels | 2.0 |
| HDCP version | 1.4 |
| Design | |
| Product colour | Black |
| Rack mounting | Yes |
| Push button | Yes |
| Mean time between failures (MTBF) | 130000 h |
| LED indicators | Yes |
| Hot keys | Yes |
| Housing material | Metal |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Input current | 1 A |
| Power source | DC |
| Output current | 3 A |
| Power consumption (typical) | 36 W |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Input voltage | 100 - 240, 12 V |
| Video | |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Technical details | |
| USB hub | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Sustainability | |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 5.12" (130 mm) |
| Depth | 8.66" (220 mm) |
| Height | 1.73" (44 mm) |
| Weight | 2.2 lbs (1 kg) |
| Package width | 8.35" (212 mm) |
| Package depth | 16.1" (410 mm) |
| Package height | 3.43" (87 mm) |
| Package weight | 2.65 lbs (1.2 kg) |
| Packaging data | |
| Package width | 8.35" (212 mm) |
| Package depth | 16.1" (410 mm) |
| Package height | 3.43" (87 mm) |
| Package weight | 2.65 lbs (1.2 kg) |
| Packaging content | |
| Rubber feet | Yes |
| Quick installation guide | Yes |
| Other features | |
| Colour depth | 10 bit |
| IP control | No |
| Display resolution at frequency | 3840x2160 @ 60hz 3840x2160 @ 30hz 2560x1600 @ 60hz 2560x1600 @ 30hz 2560x1440 @ 60hz 2048x1536 @ 60hz 2048x1536 @ 30hz 1920x1440 @ 60hz 1920x1200 @ 60hz 1920x1080 @ 60hz 1680x1050 @ 60hz 1600x1200 @ 60hz 1600x1024 @ 60hz 1600x900 @ 60hz 1440x1080 @ 60hz 1366x768 @ 60hz 1360x768 @ 60hz 1280x1024 @ 60hz 1280x960 @ 60hz 1280x800 @ 60hz 1280x768 @ 60hz 1280x720 @ 60hz 1176x664 @ 60hz 1152x864 @ 60hz 1024x768 @ 60hz 800x600 @ 60hz |
| Push button | Yes |
| Hot keys | Yes |
| Logistics data | |
| Master (outer) case width | 21.5" (545 mm) |
| Master (outer) case length | 17" (433 mm) |
| Master (outer) case height | 10.2" (258 mm) |
| Products per master (outer) case | 6 pc(s) |
