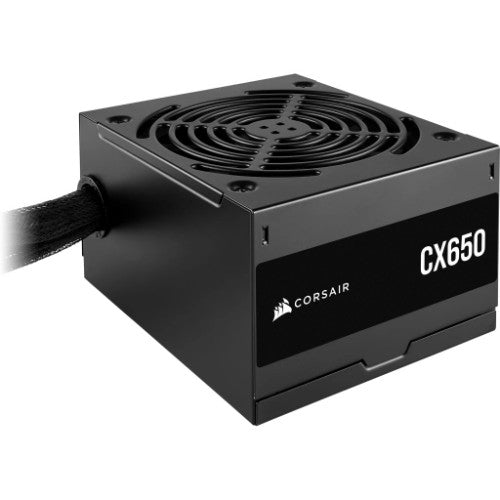

Corsair CX Series CX650 power supply unit 650 W 24-pin ATX ATX Black
Part number
CP-9020278-NA
$98.38 CAD
Corsair CX Series CX650, 650 W, 100 - 240 V, 47 - 63 Hz, 10 - 5 A, 130 W, 624 W
Description
Corsair CX Series CX650. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product color: Black, Cooling type: Active, Fan diameter: 4.72" (12 cm). Width: 4.92" (125 mm), Height: 3.39" (86 mm), Weight: 5.11 lbs (2.32 kg)Specifications
| Cooling | |
|---|---|
| Fan diameter | 4.72" (12 cm) |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cooling type | Active |
| Design | |
| 80 PLUS certification | 80 PLUS Bronze |
| Product colour | Black |
| Fan diameter | 4.72" (12 cm) |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cooling type | Active |
| Power | |
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 10 - 5 A |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 624 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 52 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Ports & interfaces | |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 3 |
| Cabling type | Non-Modular |
| Number of EPS connectors | 1 |
| Performance | |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Mean time between failures (MTBF) | 100000 h |
| Weight & dimensions | |
| Width | 4.92" (125 mm) |
| Height | 3.39" (86 mm) |
| Weight | 5.11 lbs (2.32 kg) |
| Certificates | |
| 80 PLUS certification | 80 PLUS Bronze |
