In stock

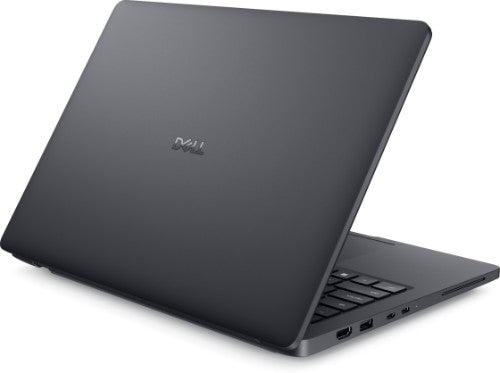

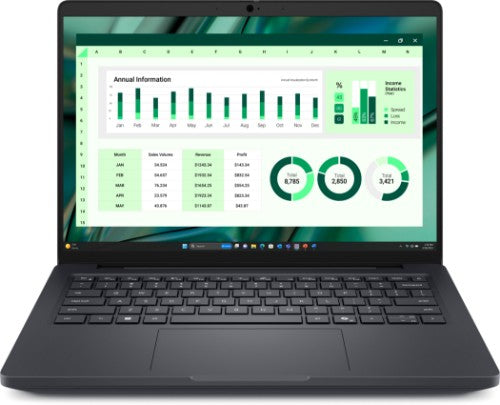

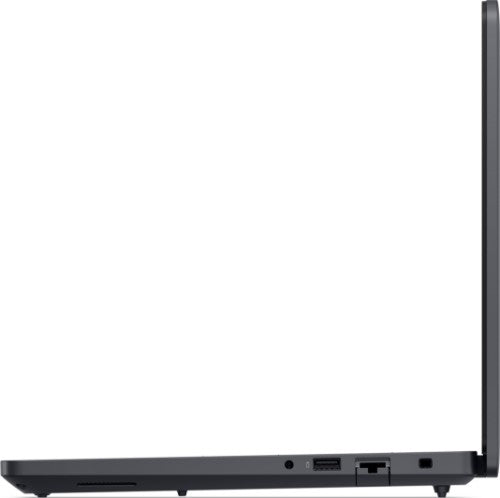

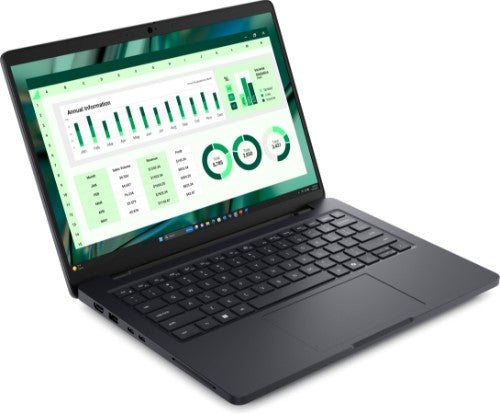

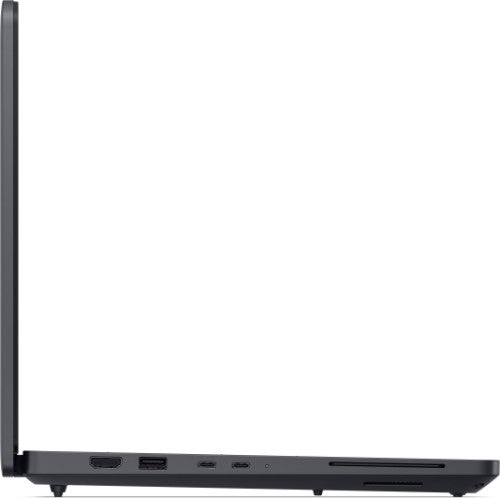

DELL Pro Max 14 MC14250 Intel Core Ultra 5 225H Mobile workstation 14" Full HD+ 32 GB LPDDR5x-SDRAM 512 GB SSD Wi-Fi 7 (802.11be) Windows 11 Pro Black
Part number
P7C90
$2,430.35 CAD
Intel Core Ultra 5 225H (18MB Cache), 32GB LPDDR5x-SDRAM, 512GB SSD, 35.6 cm (14") Full HD+ 1920 x 1200 WVA, Intel Arc 130T, LAN, WLAN, Webcam, Windows 11 Pro 64-bit
Key Features
- Windows 11 Pro 64-bit
- Intel Core Ultra 5 225H (18MB Cache)
- 35.6 cm (14") Full HD+ 1920 x 1200 WVA
- 32GB LPDDR5x-SDRAM (1 x 32) & 512GB SSD
Description
Experience performance and portability with the Dell Pro Max 14 laptop. Designed for power users, light design and creative applications in the office or on the go.Specifications
| Design | |
|---|---|
| Product type | Mobile workstation |
| Product colour | Black |
| Form factor | Clamshell |
| Display | |
| Display diagonal | 14" |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| HD type | Full HD+ |
| Pixel density | 162 ppi |
| LED backlight | Yes |
| Display brightness | 300 cd/m² |
| Display response rise/fall | 35 ms |
| Panel type | WVA |
| Contrast ratio (typical) | 800:1 |
| Anti-glare screen | Yes |
| Maximum refresh rate | 60 Hz |
| RGB colour space | NTSC |
| Colour gamut | 45% |
| Native aspect ratio | 16:10 |
| Processor | |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor family | Intel Core Ultra 5 |
| Processor model | 225H |
| Processor boost frequency | 4.9 GHz |
| Processor cores | 14 |
| Processor threads | 14 |
| Processor cache | 18 MB |
| Motherboard chipset | Intel SoC |
| Processor manufacturer | Intel |
| Processor base power | 28 W |
| Maximum turbo power | 115 W |
| Efficient-core base frequency | 1.3 GHz |
| Performance-core base frequency | 1.7 GHz |
| Efficient-core Max Turbo Frequency | 4.3 GHz |
| Performance-core Max Turbo Frequency | 4.9 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Low Power Efficient-cores | 2 |
| Neural processor unit (NPU) | |
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 83 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 63 TOPs |
| Memory | |
| Internal memory | 32 GB |
| Internal memory type | LPDDR5x-SDRAM |
| Memory layout (slots x size) | 1 x 32 GB |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
| Memory data transfer rate | 7467 MT/s |
| Storage | |
| Optical drive type | No |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| SSD form factor | M.2 |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| Total SSDs capacity | 512 GB |
| SSD performance class | 35 |
| NVMe | Yes |
| M.2 SSD size | 2230 (22 x 30 mm) |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc 130T |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board GPU manufacturer | Intel |
| Audio | |
| Audio chip | Realtek ALC3329 |
| Number of microphones | 2 |
| Audio system | MaxxAudio Pro |
| Number of built-in speakers | 2 |
| Speakers manufacturer | Waves |
| Speaker power | 2 W |
| Built-in microphone | Yes |
| Camera | |
| Front camera | Yes |
| Front camera resolution (numeric) | 2.07 MP |
| Front camera resolution | 1920 x 1080 pixels |
| Video capturing speed | 30 fps |
| Privacy camera | Yes |
| Privacy type | Privacy shutter |
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
| Windows Hello | Yes |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Mobile network connection | No |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| WLAN controller model | Intel Wi-Fi 7 BE201 |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Wi-Fi data rate (max) | 5760 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| WLAN controller manufacturer | Intel |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Combo headphone/mic port | Yes |
| USB Power Delivery (USB PD) | Yes |
| PowerShare | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Performance | |
| Motherboard chipset | Intel SoC |
| Accelerometer | Yes |
| Hall sensor | Yes |
| Keyboard | |
| Pointing device | Touchpad |
| Numeric keypad | No |
| Keyboard backlit | Yes |
| Copilot key | Yes |
| Software | |
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Brand-specific features | |
| Brand specific technologies | Control Vault 3+, Express Charge Boost capable |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 4 |
| Battery capacity | 72 Wh |
| Battery recharge time | 3 h |
| Battery voltage | 15.6 V |
| Fast charging | Yes |
| Battery weight | 9.52 oz (270 g) |
| Power | |
| AC adapter power | 100 W |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Power Delivery (USB PD) | Yes |
| USB Type-C charging port | Yes |
| USB Type-C required charging power (min) | 45 W |
| USB Type-C required charging power (max) | 71 W |
| Security | |
| Cable lock slot | Yes |
| Cable lock slot type | Wedge |
| Fingerprint reader | Yes |
| Trusted Platform Module (TPM) | Yes |
| Windows Hello | Yes |
| Smart card reader | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | -598.4 - 120000" (-15.2 - 3048 m) |
| Non-operating altitude | -598.4 - 420000" (-15.2 - 10668 m) |
| Operating shock | 110 G |
| Non-operating shock | 160 G |
| Operating vibration | 0.66 G |
| Non-operating vibration | 1.3 G |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, EPEAT Climate +, EPEAT Gold |
| Weight & dimensions | |
| Weight | 4.03 lbs (1.83 kg) |
| Width | 12.3" (313 mm) |
| Depth | 8.95" (227.3 mm) |
| Height (front) | 0.583" (1.48 cm) |
| Height (rear) | 0.744" (1.89 cm) |
| Packaging data | |
| Cables included | AC |
| AC adapter included | Yes |
| Packaging content | |
| Cables included | AC |
| AC adapter included | Yes |
| Technical details | |
| Sustainability certificates | ENERGY STAR, EPEAT Climate +, EPEAT Gold |
| Other features | |
| WLAN controller model | Intel Wi-Fi 7 BE201 |
| Audio system | MaxxAudio Pro |
| On-board graphics card | Yes |
| AC adapter included | Yes |
| Anti-glare screen | Yes |
