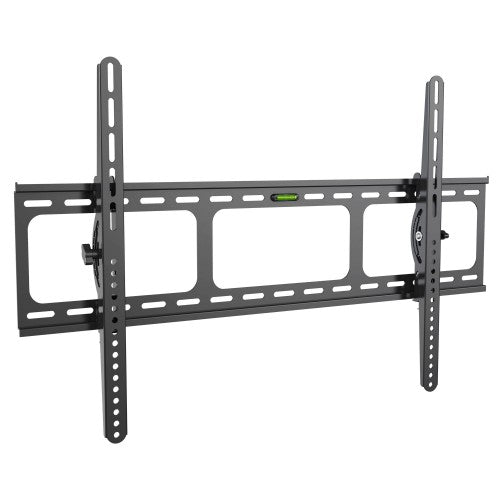

Amer Mounts BIGASSMOUNT60T TV mount 100" Black
Part number
BIGASSMOUNT60T
$49.92 CAD
Flat Panel Wall Mount with Tilt (Max Display Panel Size 100″)
Key Features
- Single solid steel construction with built in bubble level for easy installation
- VESA range support up to 800x500mm +10° ~ -10°
- Screen tilt range +10° ~ -10°
- Spring locks for holding your display panel in place with release cords for simple unmounting
- Low profile design has your monitor just 1.69″ (43mm) from the wall
- Includes all hardware necessary for wall and display panel mounting (tools not included)
Description
The BIGASSMOUNT60T is a heavy duty TV monitor mount with a low profile design and the ability to tilt ±10°. It works with monitors that range from 42 to 100 inches with a 132 pound maximum weight capacity. It supports most monitors sold today with VESA mounting points. The low profile design allows you to mount your TV closer to the wall for a clean and sleek look. Installing the BIGASSMOUNT60T is an easy process as all hardware is included to properly mount your TV. NOTE: With some new super slim bezel 42" displays please make sure height is over 21" (vertical mounting bars are 21inches)Specifications
| Mounting | |
|---|---|
| Maximum weight capacity | 132.3 lbs (60 kg) |
| Minimum screen size | 42" |
| Maximum screen size | 100" |
| Panel mounting interface | 800 x 500 mm |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Maximum VESA mount | 31.5 x 19.7" (800 x 500 mm) |
| Ergonomics | |
| Tilt angle range | -10 - 10° |
| Distance to the wall (max) | 1.69" (4.3 cm) |
| Tilt adjustment | Yes |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Mounting type | Wall |
| Weight & dimensions | |
| Weight | 24 lbs (10.9 kg) |
| Packaging data | |
| Package width | 34.4" (875 mm) |
| Package depth | 8.86" (225 mm) |
| Package height | 9.65" (245 mm) |
| Package weight | 31.3 lbs (14.2 kg) |
| Other features | |
| Mounting type | Wall |
